Engco Application is a very easy-to-use tool for rebar detailing in Reinforced Concrete.

This application includes five main windows for input of Foundations by all types, columns (all shapes), Beams (Continues and simple beams), Walls elevations, and Around Openings rebar.

This main program allows producing the rebar shop drawings as AutoCAD drawing (dwg) along with automatically generated bar bending schedules (BBS) as Excel Sheet to ease the modifying process which reduces error risk to almost zero.

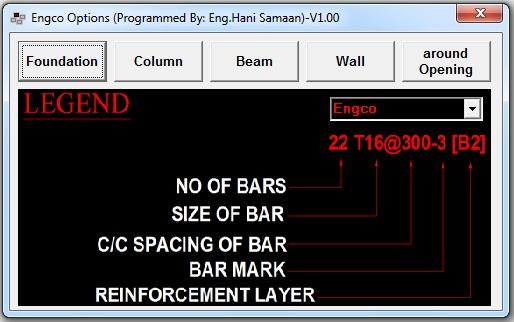

LEGEND:Reinforcement on the drawing will be shown as formula ( N TD@S-BM [Name] )show the number of bars N ,the diameter D, spacing between bars S, reference number called Bar Mark BM, and the name of the reinforcement layer B for Bottom T for Top Ring or Link

To use the application click the button on the main window

. To go back to the main window close the sub window

To minimize click on the Picture

 For more information download the free program and see the samples of input-output files

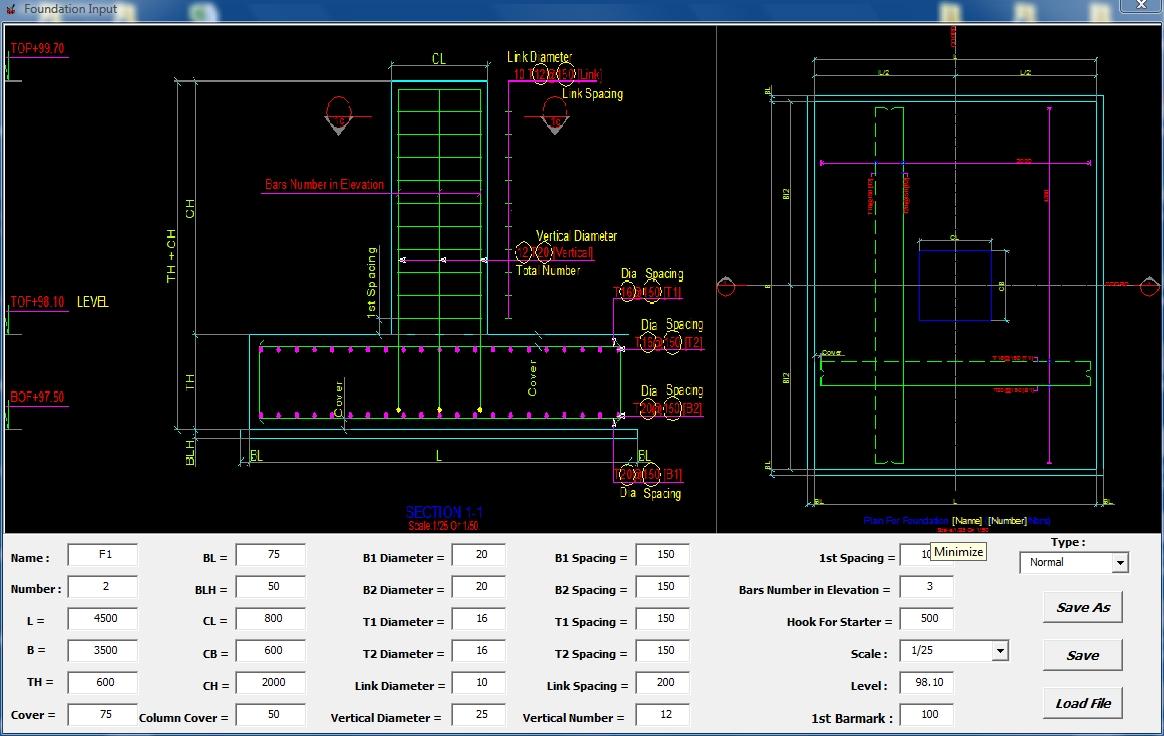

Foundation Program

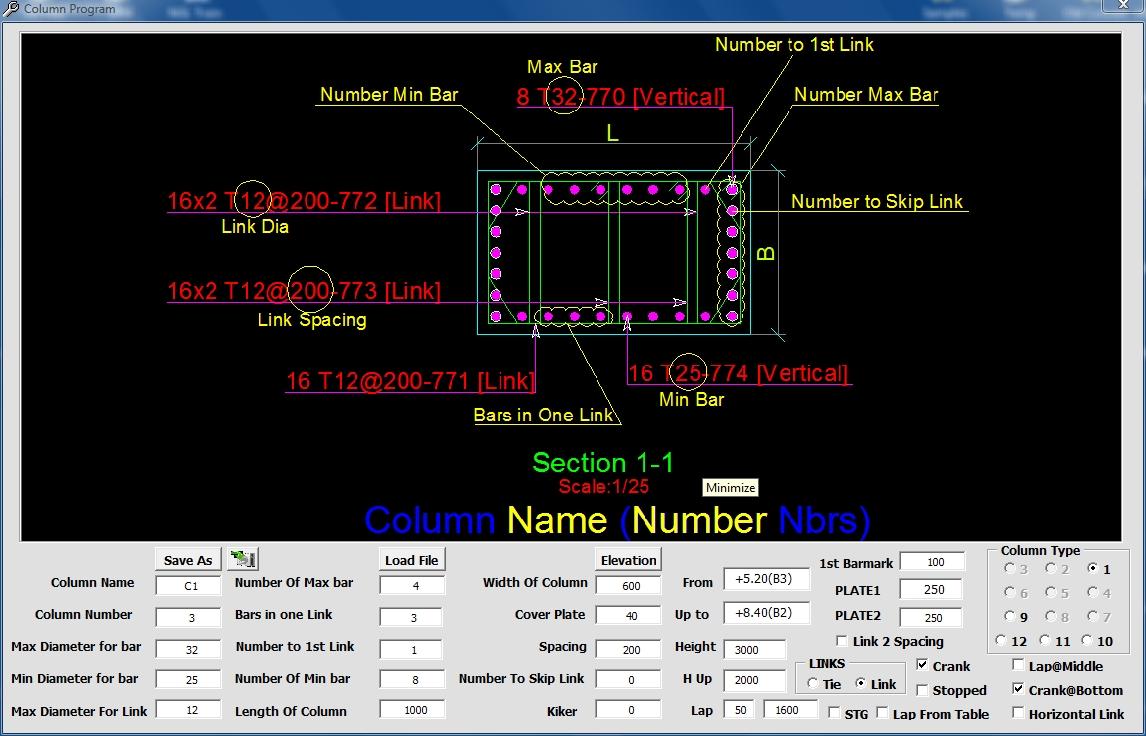

Columns Program

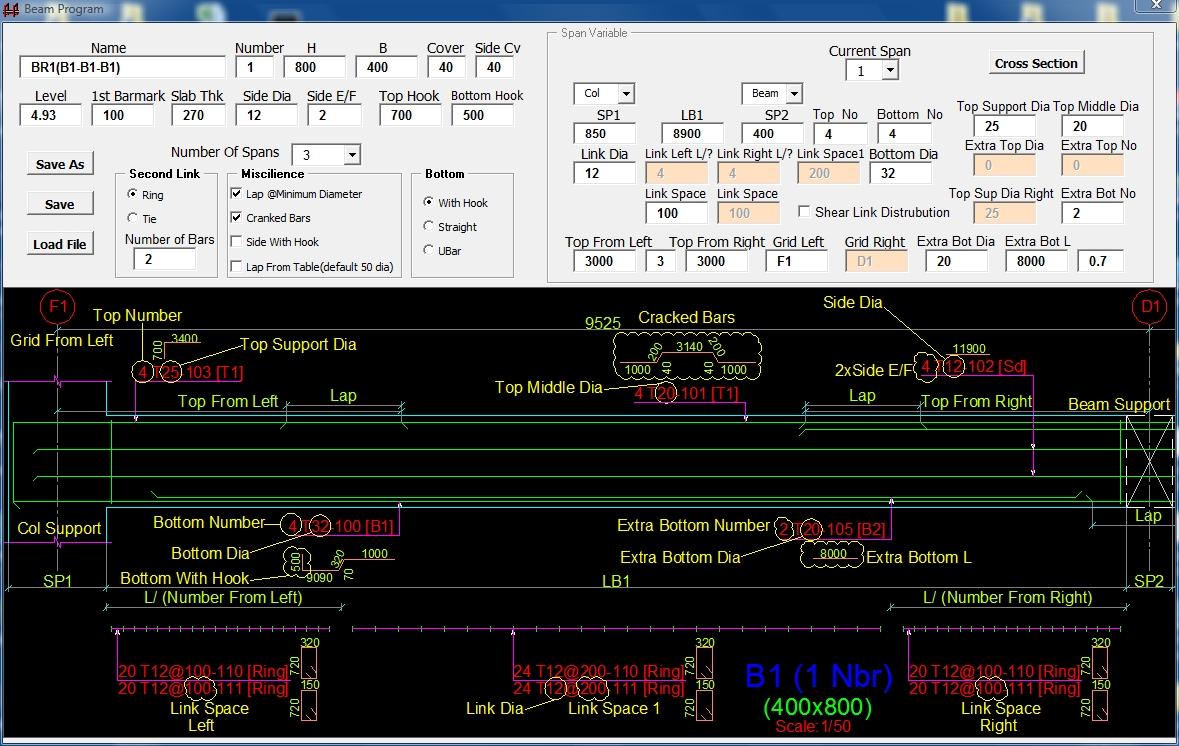

Beams Program

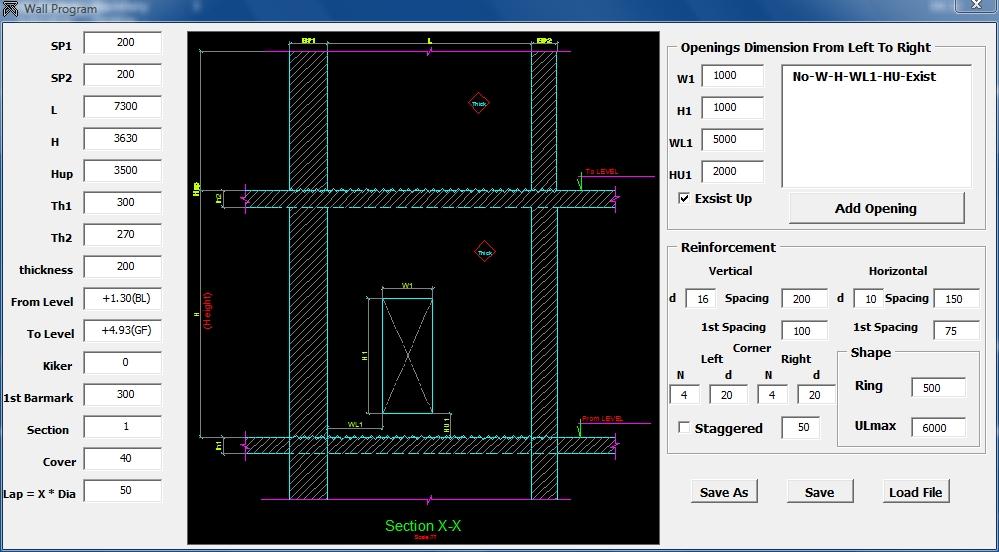

Walls Elevation Program

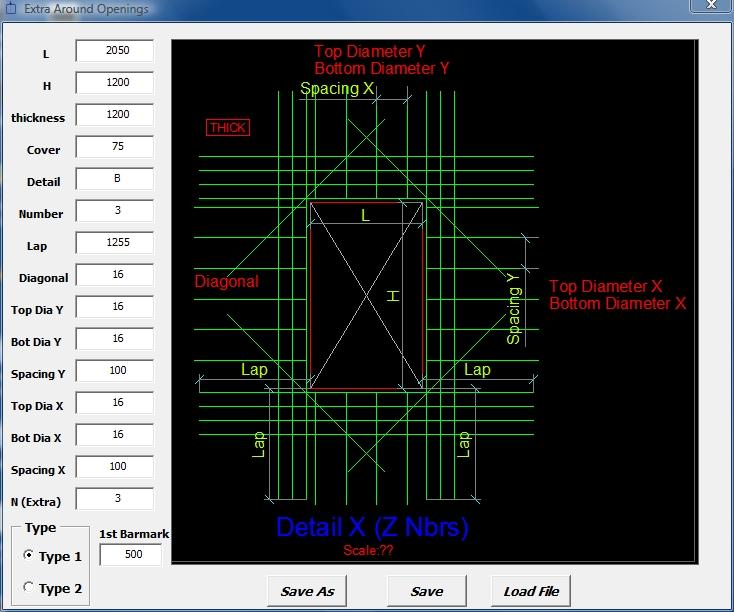

Around Openings Program
