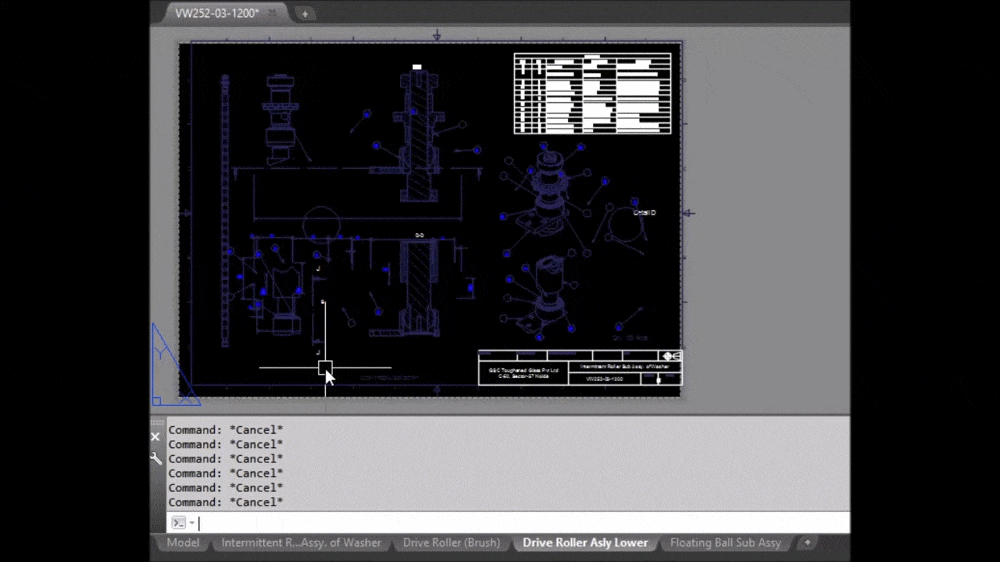

This will help to save all layouts to separate drawings. Optionally bind xrefs and purge.

More Free AutoLISP and Visual LISP code snippets for AutoCAD

JTB LayoutsToDwgs as an app is available on Autodesk App Store and is free too.

Page Setups, use of STB plot styles and custom DWG properties (DWGPROPS command) are deleted by Autodesk AutoCAD in the process as the WBLOCK command is being used in the app. To retain these use the app available on Autodesk App Store that has the option to instead use SAVEAS.

Support for BricsCAD, ZWCAD or other DWG CAD apps with Lisp upon request.


 Click here to download the code as a file.



;;;
;;;    LayoutsToDwgs.lsp
;;;    Created 2000-03-27

;;; By Jimmy Bergmark
;;; Copyright (C) 1997-2016 JTB World, All Rights Reserved
;;; Website: http://jtbworld.com
;;; E-mail: info@jtbworld.com
;;;
;;; 2003-12-12 Sets UCS to world in model space
;;;            to avoid problem with wblock
;;; 2011-06-06 Excludes empty layouts
;;; 2012-06-01 Handle Map prompt with WBLOCK
;;;             Include AutoCAD Map information in the export? [Yes/No] <Y>:
;;; 2013-03-04 Added _ on some commands to internationalize it
;;; 2015-12-01 Updated for AutoCAD 2015 and 2016
;;; 2016-10-26 Modified to also allow suffix
;;;
;;;    For AutoCAD 2000, 2000i, 2002, 2004, 2005,
;;;    2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014, 2015, 2016 and newer
;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;   Creates separate drawings of all layouts.
;;;   The new drawings are saved to the current drawings path
;;;   and overwrites existing drawings.
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
(defun c:LayoutsToDwgs (/ errexit undox olderr oldcmdecho oldexpert oldcmddia fn path
                          msg msg2 fileprefix filesuffix i j)

  (defun errexit (s)
    (princ "\nError:  ")
    (princ s)
    (restore)
  )

  (defun undox ()
    (command "._undo" "_E")
    (setvar "cmdecho" oldcmdecho)
    (setvar "expert" oldexpert)
    (setvar "cmddia" oldcmddia)
    (setq *error* olderr)
    (princ)
  )

  (setq olderr  *error*
        restore undox
        *error* errexit
  )
  (setq oldcmdecho (getvar "cmdecho"))
  (setq oldexpert (getvar "expert"))
  (setq oldcmddia (getvar "cmddia"))
  (setvar "cmdecho" 0)
  (setvar "expert" 2)
  (setvar "cmddia" 0)
  (defun DelAllLayouts (Keeper / TabName)
    (vlax-for Layout
                     (vla-get-Layouts
                       (vla-get-activedocument (vlax-get-acad-object))
                     )
      (if
        (and
          (/= (setq TabName (strcase (vla-get-name layout))) "MODEL")
          (/= TabName (strcase Keeper))
        )
         (vla-delete layout)
      )
    )
  )

  (vl-load-com)
  (setq msg "" msg2 "" i 0 j 0)
  (command "._undo" "_BE")
  (setq fileprefix (getstring "Enter filename prefix: "))
  (setq filesuffix (getstring "Enter filename suffix: "))
  (foreach lay (layoutlist)
    (if (and (/= lay "Model") (> (vla-get-count (vla-get-block (vla-Item (vla-get-Layouts (vla-get-activedocument (vlax-get-acad-object))) lay))) 1))
      (progn
        (command "_.undo" "_M")
        (DelAllLayouts lay)
        (setvar "tilemode" 1)
        (command "_.ucs" "_w")
        (setvar "tilemode" 0)
        (setq path (getvar "DWGPREFIX"))
        (setq fn (strcat path fileprefix lay filesuffix ".dwg"))
        (if (findfile fn)
          (progn
            (command "_.-wblock" fn)
            (if (equal 1 (logand 1 (getvar "cmdactive")))
              (progn
                (setq i (1+ i) msg (strcat msg "\n" fn))
                (command "*")
              )
              (setq j (1+ j) msg2 (strcat msg2 "\n" fn))
            )
          )
          (progn
            (command "_.-wblock" fn "*")
            (setq i (1+ i)  msg (strcat msg "\n" fn))
          )
        )
        (if (equal 1 (logand 1 (getvar "cmdactive")))
          ; Include AutoCAD Map information in the export?
          ; If you don't want to include Map information in the new files change "_Y" to "_N" below
          (command "_Y")
        )
        (command "_.undo" "_B")
      )
    )
  )
  (if (/= msg "")
    (progn
      (if (= i 1)
        (prompt "\nFollowing drawing was created:")
        (prompt "\nFollowing drawings were created:")
      )
      (prompt msg)
    )
  )
  (if (/= msg2 "")
    (progn
      (if (= j 1)
        (prompt "\nFollowing drawing was NOT created:")
        (prompt "\nFollowing drawings were NOT created:")
      )
      (prompt msg2)
    )
  )
  (command "._undo" "_E")
  (textscr)
  (restore)
  (princ)
)
(princ)
