Copy a rectangular window of selected objects out from your drawing, and trim everything outside the window's edges.
Very useful tool to quickly extract details from a master plan drawing.

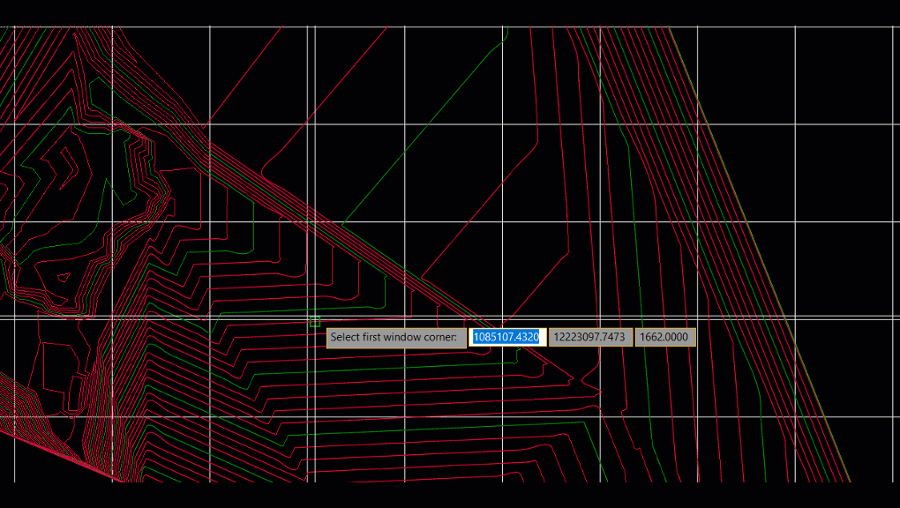

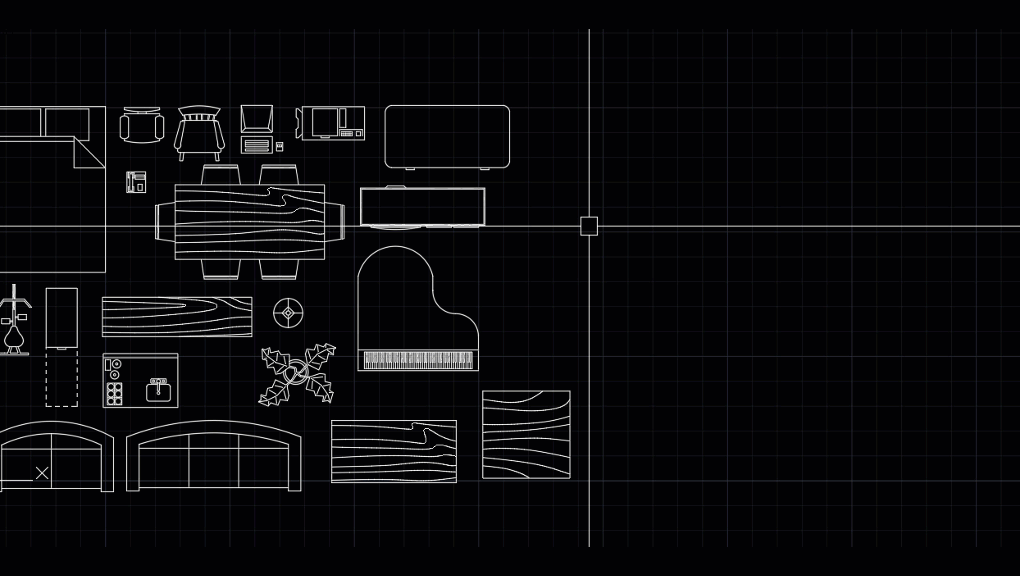

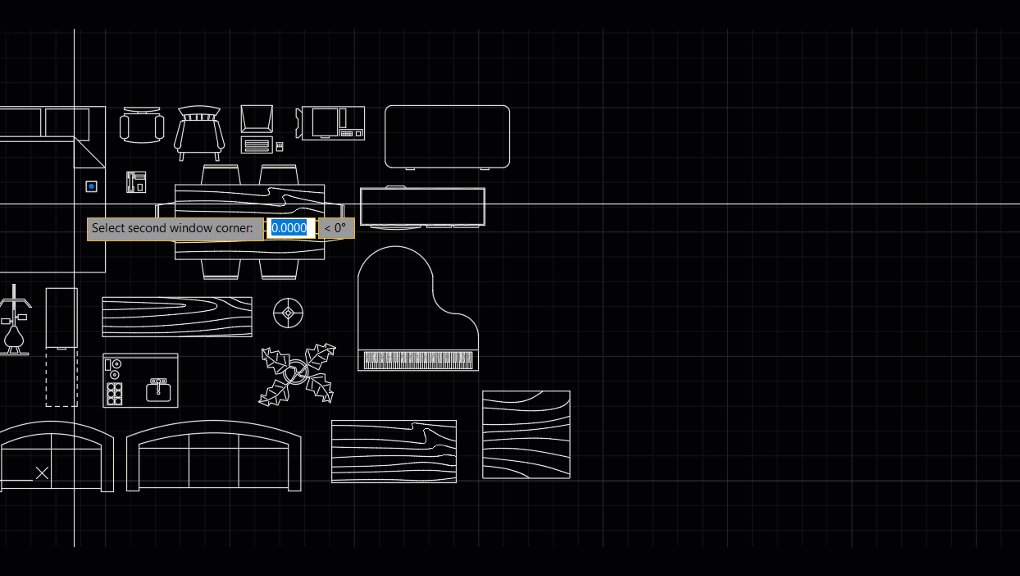

Run TrimWindow command from the ribbon or command line, and you will be asked to pick 2 corners of a rectangle selection. Let's call it the TrimWindow.
Then, all supported drawings objects within the TrimWindow will be trimmed and copied to another location.
Notes
+ To trim 3D polylines, copied objects are flatten to the XY plane. Original objects are unchanged.
+ Supported object types are: 2D line, curve, 3D poly, dimension, leader. Text and hatch are copied only, not trimmed.
How it works

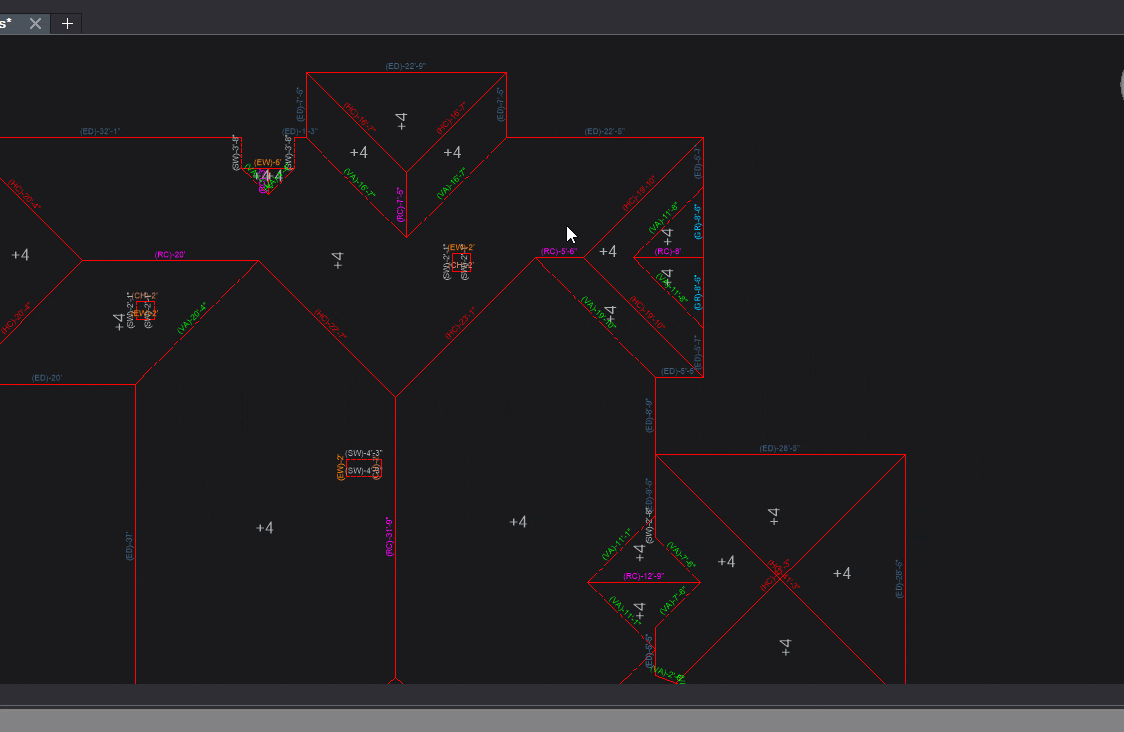

Works with 3D polylines
Settings Window
Copy to clipboard mode
YouTube Video showing how it works
Download
Trial License will expire in 15 days after first usage. Support is available during the trial as well as after purchase.
JTB TrimWindow can be downloaded here, or in Autodesk App Store.
If purchase has been done via Autodesk App Store the download is available on the Autodesk App Store My Downloads page. Sign in with the same account used when purchasing.
System requirements
Operating system: same as the CAD software is running on.
Compatible with AutoCAD versions (2013 and up to AutoCAD 2025). Works with all flavors/verticals based on AutoCAD like AutoCAD Architecture (ACA), AutoCAD Civil 3D, AutoCAD Electrical , AutoCAD Map 3D, AutoCAD Mechanical, AutoCAD MEP (AMEP, ABS), AutoCAD P&ID, AutoCAD Plant 3D, Autodesk Advance Steel.
BricsCAD Pro or Platinum 15 and newer is supported. BricsCAD Lite is not supported.
Contact us if support for other CAD software is needed.
JTB World is an Autodesk Authorised Developer
Purchase
New license: 25 USD for one license of JTB TrimWindow or less depending on the quantity of licenses.
Purchase directly from us. Click on Buy Now below.
Purchase JTB TrimWindow from the Autodesk App Store site.
Upgrade license: 15 USD for one license of JTB TrimWindow or less depending on the quantity of licenses.
Once installed, the app is running in Trial Mode, with Trial License. Trial License will expire 15 days after first usage. See activation instructions here: JTB World Apps Licensing.
If you have really many users that you want to give access to this software we can discuss a discounted price based on your particular situation. Educational discounts available.
The license is perpetual. Support and upgrades is included for a minimum of 2 years after purchase. If you have more than one computer and you are the only user of the application one license is enough.
If purchase has been done via Autodesk App Store the download is available on the Autodesk App Store My Downloads page. Sign in with the same account used when purchasing.
If your company is tax exempt note that BlueSnap does not currently offer a way to prevent tax from being charged on orders. We need a copy of the tax exempt certificate to refund the tax if already paid.
Available payment methods depending on country where payment is done from: Local Bank Transfer (Canada), Wire Transfer to Canada, Interac e-Transfer, Cheque (to Canada). Via BlueSnap (Global Payment Gateway) these methods may be available (not a complete list as it is updated from time to time by BlueSnap): Credit card (Visa, Master Card, American Express, Discover, Diners Club, JCB, Carte Bleue), PayPal, Local Bank Transfer, Wire Transfer, ACH, Google Pay, UK Direct Debit, Smart Debit, Real-time Bank Transfer, Electronic Check (ECP), Apple Pay, Skrill (Moneybookers), WebMoney, Sofort, Giropay, iDeal, ENETS and Alipay (SEPA (Single Euro Payments Area) Direct Debit, PaySafeCard, Ukash, cashU, Boleto Bancario, Boleto Bancario can be made available upon request) - Refund policy
Documentation

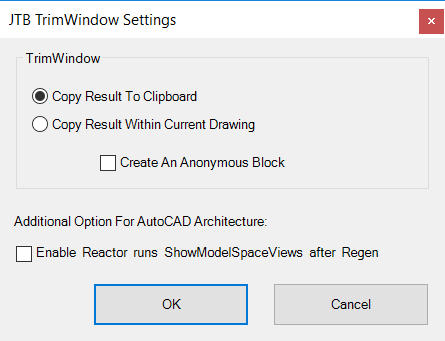

Run TrimWindow_Settings to bring up the settings window where you can select how TrimWindow generates the output:
+ Option to put all TrimWindow's object to an anonymous block
+ Option to run move command to move TrimWindow to a new location, or copy it to clipboard so that you can use PasteClip command to insert it later elsewhere
+ There is also a custom option requested by an AutoCAD Architecture client. This option creates a reactor that runs command ShowModelSpaceViews after any Regen command.
Then, you can run TrimWindow command by clicking to the ribbon, or type its name to the command line, and follow the on-screen instructions. (See About section above).
- TrimWindow - Copy a rectangular window of selected objects out from your drawing, and trim everything outside the window's edges.
- TrimWindow_Settings - Select output options of TrimWindow command.
- JTBW_Activate_Apps - Run this command to activate the app.
Supported object types are: 2D line, curve, 3D poly, dimension, leader. Text and hatch are copied only, not trimmed.
Note: Once installed, the app is running in Trial Mode, with Trial License. Trial License will expire 15 days after first usage. See activation instructions here: JTB World Apps Licensing.
