  • DimNotes is an add-on to AutoCAD based products.
  • DimNotes makes it easy to add dimension notes to dimension objects in AutoCAD.
  • The list with notes is saved to a file and can easily be edited.
  • The note or comment can be added to different locations, before as prefix, after as suffix, above and below existing dimension text.
  • Existing notes can be replaced.
  • Multiple notes can be added.
  • Associative dimension value is retained.
  • Annotative dimensions supported.
  • Available as AutoCAD App (DimNotes panel on the Plug-ins/Add-ins Ribbon tab).



For AutoCAD 2012 and newer download DimNotes as an AutoCAD app (plug-in/add-in) from the Autodesk App Store site as a free trial. Purchase is also available through this site.

If purchase has been done via Autodesk App Store the download is available on My Downloads page. Sign in with the same account used when purchasing.

When not registered DimNotes works as a free trial that is fully functional except that you can only add notes on five dimensions per AutoCAD session. When purchased it can be used without restrictions.


For older versions of AutoCAD:

Installer for 2010-2012 64-bit here
Installer for 2010-2012 32-bit here
Manual installation for 2010-2012 64-bit here
Manual installation for 2010-2012 32-bit here

Installer for 2007-2009 64-bit here
Installer for 2007-2009 32-bit here
Manual installation for 2007-2009 64-bit here
Manual installation for 2007-2009 32-bit here


Subscribe to our DimNotes newsletter or any of our other Newsletters.

System requirements

Compatible with AutoCAD 2007 up to AutoCAD 2019. All flavors based on AutoCAD should be working like AutoCAD Architecture (ACA), Architectural Desktop (ADT), AutoCAD Civil 3D, AutoCAD Electrical , AutoCAD Map 3D, AutoCAD Mechanical, AutoCAD MEP (AMEP, ABS), AutoCAD P&ID, AutoCAD Plant 3D.

Compatible with those operating systems AutoCAD runs on like Windows Vista, Windows 7, Windows 8, Windows 8.1 and Windows 10.
Older Windows versions might also work but are not directly supported.

JTB World is an Autodesk Authorised Developer



2.5 USD for one license of DimNotes or less depending on the quantity of licenses.

Secure Online Payments and Credit Card Processing by BlueSnap

If you have really many users that you want to give access to this software we can discuss a discounted price based on your particular situation. Educational discounts available.

The license is perpetual and support is included. If you have more than one computer and you are the only user of the application one license is enough.

Available payment methods depending on country where payment is done from: Local Bank Transfer (Canada), Wire Transfer to Canada, Interac e-Transfer, Cheque (to Canada). Via BlueSnap (Global Payment Gateway) these methods may be available (not a complete list as it is updated from time to time by BlueSnap): Credit card (Visa, Master Card, American Express, Discover, Diners Club, JCB, Carte Bleue), PayPal, Local Bank Transfer, Wire Transfer, Real-time Bank Transfer, Electronic Check (ECP), Apple Pay, Skrill (Moneybookers), WebMoney, SEPA (Single Euro Payments Area) Direct Debit, Sofort, Giropay, iDeal and Alipay (SEPA (Single Euro Payments Area) Direct Debit, PaySafeCard, Ukash, cashU, Boleto Bancario, Boleto Bancario can be made available upon request) - Refund policy

DimNotes can also be downloaded, installed and purchased as an app from the Autodesk App Store site. Use this link to purchase.


Installation of as AutoCAD app

Run the installer.

Manual Installation of the AutoCAD app

This option is available for AutoCAD 2012 or newer as well as verticals. This can be done both while AutoCAD is running or not running.
Enter the below path in Windows Explorer address field and press enter.
Extract DimNotes.bundle.zip in the ApplicationPlugins folder so that a folder named DimNotes.bundle is created with all needed files.
It can look like this where jtb is an example of the user name.
PackageContents.xml should be found in the DimNotes.bundle folder.
To uninstall, delete the DimNotes.bundle folder.

Jump to the usage section.

Another Installation Option

Download the software either with the installer or without installer.

Extract the files in dimnotes.zip and run setup.exe. Default installation location is C:\Program Files\JTB World\DimNotes.

Or download without installer and place the files manually in a folder of your choice.

Notice though that you should have it on your local PC or special .NET security settings needs to be done. An error message indicating this can be something like: Request for the permission of type 'System.Security.Permissions.SecurityPermission, mscorlib, Version=, Culture=neutral, PublicKeyToken=b77a5c561934e089' failed.

JTBDimNotes.dll needs to be loaded by your AutoCAD application and that can be done in different ways. Use one of the following options.

  • Use the command NETLOAD and select JTBDimNotes.dll. This loads the command in the current session only.
  • Create a menu command, toolbar button or palette tool using CUI and force load it before running the command.
    Macro or Command string:
    ^c^c(command "netload" "C:/Program Files/JTB World/DimNotes/JTBDimNotes.dll") DimNotes;
  • Use one of the AutoLoad...reg files. Double click on the file and accept to merge to the registry. This will make sure that the command DimNotes is available whenever you run AutoCAD.
  • Add the row below to your acad.lsp file so it loads automatically when AutoCAD starts.
    (command "netload" "C:/Program Files/JTB World/DimNotes/JTBDimNotes.dll")

When manually installed the included DimNotes.bmp can be used as menu command image or toolbar button image and DimNotes.png can be used as palette tool image.


Command to use is JTBWDimNotes or in older versions DimNotes.

Alternatively use the button on the Ribbon tab Plug-ins/Add-ins, panel DimNotes.


To register the software when you have purchased click on the Register button that is available when running the command DimNotes. Enter the register key you have got emailed in the text box.

If you want to deploy and register DimNotes to many users contact us for instructions.

Add Dimension Notes

Either you can pre select one or multiple dimensions or the command will ask you to select them.

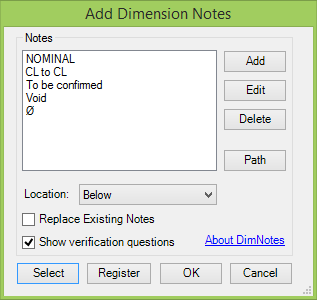

Start by adding your typical notes.

JTBDimNotes.txt is the text file that holds the dimension notes. The file will be created when you start to add notes and have pressed OK. Use the Path button to change the location. The default location is in %appdata%\JTB World\DimNotes.

Select one of the notes.

Select the location where you want to place the note in relation to existing dimension text. The note can be added Above, After with space, After without space, Before with space, Before without space or Below existing text. There is also an option "Replace" to completely replace the text so the associative dimension text is removed if the text is <>. When Location Replace is used the checkbox "Replace Existing Notes" makes no difference.

If you want to replace existing notes select the checkbox "Replace Existing Notes".

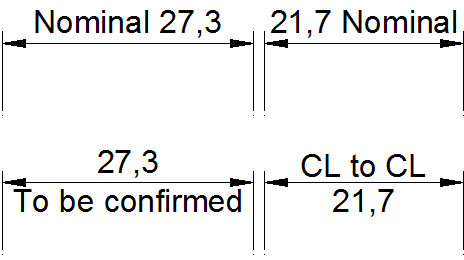

Location option Replace can be used to add both before and after the dimension. Say the existing dimension text is 28 and the note is (<>) the result will be (28). Even notes using control codes, Text Symbols and Special Characters like
\A0;<> {\H1.5x;}\A2;\H0.71x;%%p0.1 can be used with this result: 28 ±0.1.

Solution to the following error is to right click on the DLL file and click on Unblock.

Cannot load assembly. Error details: System.IO.FileLoadException: Could not
load file or assembly 'file:///C:\Users\JTB\AppData\Roaming\JTB
World\DimNotes\JTBDimNotes.dll' or one of its dependencies. Operation is not
supported. (Exception from HRESULT: 0x80131515)
File name: 'file:///C:\Users\JTB\AppData\Roaming\JTB
World\DimNotes\JTBDimNotes.dll' ---> System.NotSupportedException: An attempt
was made to load an assembly from a network location which would have caused
the assembly to be sandboxed in previous versions of the .NET Framework. This
release of the .NET Framework does not enable CAS policy by default, so this
load may be dangerous. If this load is not intended to sandbox the assembly,
please enable the loadFromRemoteSources switch. See
http://go.microsoft.com/fwlink/?LinkId=155569 for more information.
at System.Reflection.RuntimeAssembly._nLoad(AssemblyName fileName, String
codeBase, Evidence assemblySecurity, RuntimeAssembly locationHint,
StackCrawlMark& stackMark, Boolean throwOnFileNotFound, Boolean
forIntrospection, Boolean suppressSecurityChecks)
at System.Reflection.RuntimeAssembly.InternalLoadAssemblyName(AssemblyName
assemblyRef, Evidence assemblySecurity, StackCrawlMark& stackMark, Boolean
forIntrospection, Boolean suppressSecurityChecks)
at System.Reflection.RuntimeAssembly.InternalLoadFrom(String assemblyFile,
Evidence securityEvidence, Byte[] hashValue, AssemblyHashAlgorithm
hashAlgorithm, Boolean forIntrospection, Boolean suppressSecurityChecks,
StackCrawlMark& stackMark)
at System.Reflection.Assembly.LoadFrom(String assemblyFile)
at Autodesk.AutoCAD.Runtime.ExtensionLoader.Load(String fileName)
at loadmgd()

See also more details here: Solution to System.IO.FileLoadException Could not load file or assembly error

Version History

  • 2018-03-22 - version 1.3 update
    • Added support for AutoCAD® 2019 (no version number change)
  • 2017-03-21 - version 1.3 update
    • Added support for AutoCAD® 2018 (no version number change)
  • 2016-03-22 - version 1.3 update
    • Added support for AutoCAD® 2017 (no version number change)
  • 2015-03-20 - version 1.3 update
    • Added support to AutoCAD® 2016 (No change in version number)
      Added digital signing of dll and setup files
  • 2014-03-28 - version 1.3 update
    • Updated installer for the Autodesk App version to support AutoCAD 2015 and verticals.
  • 2013-10-21 - version 1.3
    • Added option to preset location and replace settings for each note individually.
    • Added option to use or not use space when the location is before or after.
  • 2013-04-13 - version 1.2 update
    • Support for AutoCAD 2014.
    • To upgrade delete the existing DimNotes.bundle folder first.
  • 2012-05-08 - version 1.2
    • Support for AutoCAD 2013 and verticals.
    • Available as AutoCAD app.
  • 2009-05-17 - version 1.1
    • Support for AutoCAD Architecture 2010 added including support for 64-bit.
