About

JTB Quick Perspective will transforms Points, Lines, straight Polylines and "landscape" Blocks to perspective view drawing, all in 2D working space.

If you want to add some simple perspective view to your drawing without getting involved in complicated 3D modeling, you will find JTB Quick Perspective invaluable. All you need is one command and you will be taken through a simple procedure where you will control required extrusion and rotation. Newly created objects are polylines and can be used as source frame for the next command call. With JTB Quick Perspective you will create 3D-like perspective views with just a few clicks!

Note: "Landscape" block should have insertion point at the bottom.

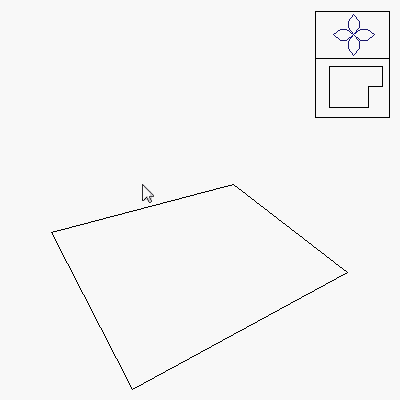

To download the sample drawing shown in the preview image: JTB Quick Perspective.dwg

JTB Quick Perspective is available as an AutoCAD app on the Plug-ins or Add-ins tab.

Download

JTB Quick Perspective 30-day trial is available as an AutoCAD app on Autodesk App Store

If purchase has been done via Autodesk App Store the download is available on My Downloads page. Sign in with the same account used when purchasing.

Alternative download: JTB Quick Perspective 3.4.0.zip

Sample drawing for this app: JTB Quick Perspective.dwg

Newsletter

Subscribe to our JTB Quick Perspective newsletter or any of our other Newsletters.

System requirements

AutoCAD 2000 or later or verticals based on AutoCAD where AutoCAD 2023 is the most recent version supported.

All verticals or flavors based on AutoCAD should be working like AutoCAD Architecture (ACA), Architectural Desktop (ADT), AutoCAD Civil 3D, AutoCAD Electrical , AutoCAD Map 3D, AutoCAD Mechanical, AutoCAD MEP (AMEP, ABS), AutoCAD P&ID, AutoCAD Plant 3D, Autodesk Advance Steel.

BricsCAD or other CAD software with LISP functionality can be supported upon request.

Compatible with those operating systems AutoCAD runs on like Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 and Windows 11.

Older Windows versions might also work but are not directly supported.

JTB World is an Autodesk Authorised Developer



Purchase

20 USD for one license of JTB Quick Perspective or less depending on the quantity of licenses.

If you have really many users that you want to give access to this software we can discuss a discounted price based on your particular situation. Educational discounts available.

The license is perpetual. Support and upgrades is included for a minimum of 2 years after purchase. If you have more than one computer and you are the only user of the application one license is enough.

Purchase from the Autodesk App Store site or by contacting us.

See activation instructions here: JTB World Apps Licensing

If purchase has been done via Autodesk App Store the download is available on the Autodesk App Store My Downloads page. Sign in with the same account used when purchasing.

If your company is tax exempt note that BlueSnap does not currently offer a way to prevent tax from being charged on orders. We need a copy of the tax exempt certificate to refund the tax if already paid.

Available payment methods depending on country where payment is done from: Local Bank Transfer (Canada), Wire Transfer to Canada, Interac e-Transfer, Cheque (to Canada). Via BlueSnap (Global Payment Gateway) these methods may be available (not a complete list as it is updated from time to time by BlueSnap): Credit card (Visa, Master Card, American Express, Discover, Diners Club, JCB, Carte Bleue), PayPal, Local Bank Transfer, Wire Transfer, ACH, Google Pay, UK Direct Debit, Smart Debit, Real-time Bank Transfer, Electronic Check (ECP), Apple Pay, Skrill (Moneybookers), WebMoney, Sofort, Giropay, iDeal, ENETS and Alipay (SEPA (Single Euro Payments Area) Direct Debit, PaySafeCard, Ukash, cashU, Boleto Bancario, Boleto Bancario can be made available upon request) - Refund policy

Documentation

Installation

Use the AutoCAD app installer that also puts a button on the Add-ins (Plug-Ins in older AutoCAD versions) Ribbon tab.

Activation

See activation instructions here: JTB World Apps Licensing

Usage

The command to start the program is JPP.

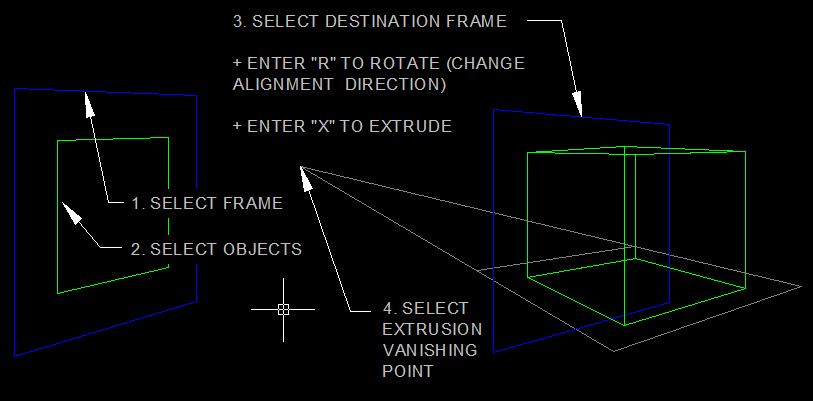

Select a trapezoid polyline as frame. Then select lines, straight polylines and landscape blocks as source objects. You can select a series of another trapezoid polylines as destination frames, or using directly the current one.

Type R to rotate frame direction. Type F to flip direction. Type X to generate extrusion. You have 2 extrusion options: extrude as Solid, or just extrude Plan only.

3 point perspective view

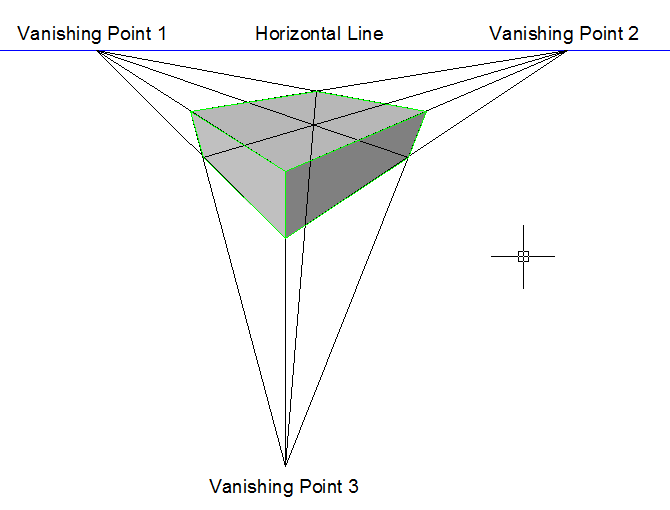

This plugin is a gift to drafters who love classical descriptive geometry, where the built-up of a 3D object's perspective view on 2 dimensional canvas will be like this:

The above schema is called 3 points perspective view, where:

+ Parallel lines will find each other at infinitive point called "vanishing point".

+ Ground plan and all of its parallel lines and plans will expand to infinitive line called "horizontal line".

We will start with a simpler case: 2 points perspective view:

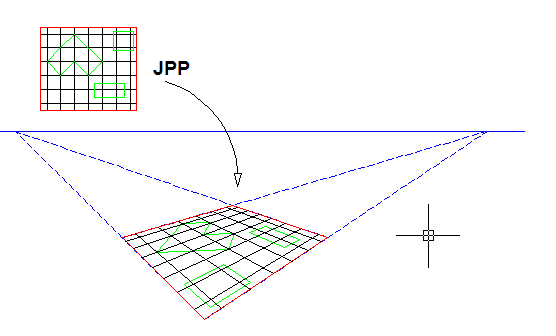

2 point perspective view

Our target is to transform a normal plan to a perspective plan. Using JPP command, you can do it as easily as follow:

+ Click to select the source frame of your source plan

+ Select the source objects

+ Click to select the destination frame of the perspective plan.

+ In a second, a perspective plan will be created. You can type R to rotate it around if 2 plans are not aligned.

Note 1: You should manually set up your drawing (the horizontal line, the vanishing points,etc.) before using the command.

Note 2: 2 frames should be draw in the same direction: clockwise or counter clockwise.

How to do it?

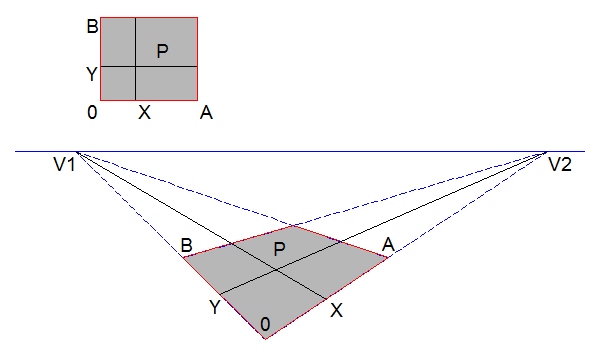

Let's start from the "atom" procedure: transforming a point from a normal plan to a perspective plan:

Denote O, A, B points as the coordinate system.

Denote X and Y as point P coordinates. We got to find the equivalent X and Y on the perspective plan.

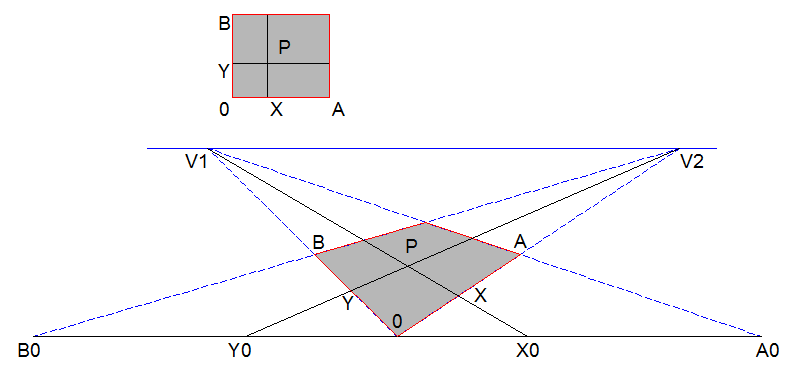

In perspective plan, ratio OX/OA and OY/OB are not the same as in the source plan, except in case they are horizontal line. Therefore, we got to draw an additional horizontal line go through O to transfer the ratios. We will find X0 and Y0 where:

+ OX0/OA0 = OX/OA (source plan)

+ OY0/OB0 = OY/OB (source plan)

Notice this is 2 points perspective view. Line V1-O, V1-X0, V1-A are parallel. Line V2-O, V2-Y0, V2-B are parallel.

Hence, our transformed point P will be found at intersection of line V1-X0 and line V2-Y0. Problem solved.

JTB Quick Perspective command

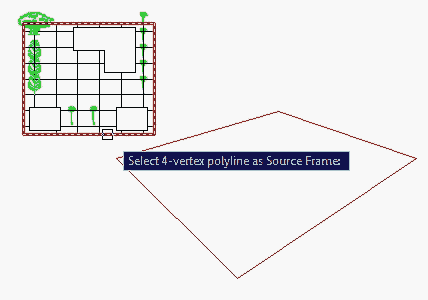

Rise from the above "atom" procedure, JPP enabled you to transform drawing from any source plan to any target plan, as image shown below:

Once a 2 point perspective drawing is done, type X and the command will help you make the extrusion. Objects can extruded from ground plan or from any plan by selecting the third vanishing point. The final result is a complete 3 points perspective view.



Version History

  • 2022-04-25 - version 3.4.0
    • Added Autodesk AutoCAD 2023 support.
  • 2021-07-09 - version 3.3.0
    • Remove messages about uninstallation in very-silent installation mode.
  • 2021-04-13 - version 3.2.3
    • Added support for Autodesk AutoCAD 2022
  • 2020-08-15 - version 3.2.2
    • Minor fix
  • 2020-07-26 - version 3.2.1
    • Upgraded to License 4.3
  • 2020-05-16 - version 3.2
    • Added support for Autodesk AutoCAD 2021
  • 2019-03-28 - version 3.1
    • Added support for Autodesk AutoCAD 2020
  • 2018-03-22 - version 3.0
    • Added support for Autodesk AutoCAD 2019
    • License system update
  • 2017-05-08 - version 2.6
    • Added support for Autodesk AutoCAD 2018
  • 2017-02-06 - version 2.5
    • Enabled to generate "landscape" blocks.
    • Added "Flip" option.
    • Fixed issue when working with UCS.
    • Fixed one bug bug when you select objects including circles, arcs or something that not supported, then at running flipping and rotating, it keeps erasing wrong objects around.
    • Fixed one bug when transform blocks to a trapezoid quadrilaterals. Transform blocks is a feature added at last. Then bug happen there when parallel lines does not intersected.
    • Works with all Autodesk® AutoCAD® products.
  • version 2.0
    • Enabled Rotate frame direction.
    • Enabled Extrusion.
