About

Sorts data in AutoCAD or BricsCAD tables, ascending or descending in selected columns.

If you are looking for a command on the Table Cell tab to sort data in your table, and can not find it, this app is for you.

Just as easy as in Excel, you select the table or cells (in AutoCAD), run the SORTTABLE command or start it from the Add-ins or Plug-ins ribbon tab in AutoCAD or the JTB Sort Table ribbon tab or toolbar in BricsCAD, then select columns to sort them.

You can sort ascending or descending. Cells with blocks and merged cells also be sorted.


Download

Trial version 30 days. Support is available during the trial as well as after purchase.

JTB Sort Table Trial for AutoCAD can be downloaded on Autodesk App Store.

If purchase has been done via Autodesk App Store the download is available on the Autodesk App Store My Downloads page. Sign in with the same account used when purchasing.

Contact us for download of JTB Sort Table for AutoCAD.

Download JTB Sort Table for BricsCAD and AutoCAD version 2.3.0

Newsletter

Subscribe to our JTB Sort Table newsletter or any of our other Newsletters.

System requirements

Operating system: same as the CAD software is running on.

Compatible with AutoCAD versions (2012 and up to AutoCAD 2023). Works with all flavors/verticals based on AutoCAD like AutoCAD Architecture (ACA), AutoCAD Civil 3D, AutoCAD Electrical , AutoCAD Map 3D, AutoCAD Mechanical, AutoCAD MEP (AMEP, ABS), AutoCAD P&ID, AutoCAD Plant 3D, Autodesk Advance Steel.

Compatible with BricsCAD.

Contact us for older versions or for other CAD software.

JTB World is an Autodesk Authorised Developer



Purchase

New license: 10 USD for one license of JTB Sort Table or less depending on the quantity of licenses.

Purchase JTB Sort Table from the Autodesk App Store site.

Purchase directly from us. Click on Buy Now below. This is required if purchasing the app for BricsCAD.

Secure Online Payments and Credit Card Processing by BlueSnap

Upgrade license: 5 USD for one license or less depending on the quantity of licenses.

Secure Online Payments and Credit Card Processing by BlueSnap

If you have really many users that you want to give access to this software we can discuss a discounted price based on your particular situation. Educational discounts available.

See activation instructions here: JTB World Apps Licensing

If purchase has been done via Autodesk App Store the download is available on the Autodesk App Store My Downloads page. Sign in with the same account used when purchasing.

The license is perpetual. Support and upgrades are included for a minimum of 2 years after purchase. If you have more than one computer and you are the only user of the application one license is enough.

If your company is tax exempt note that BlueSnap does not currently offer a way to prevent tax from being charged on orders. We need a copy of the tax exempt certificate to refund the tax if already paid.

Available payment methods depending on country where payment is done from: Local Bank Transfer (Canada), Wire Transfer to Canada, Interac e-Transfer, Cheque (to Canada). Via BlueSnap (Global Payment Gateway) these methods may be available (not a complete list as it is updated from time to time by BlueSnap): Credit card (Visa, Master Card, American Express, Discover, Diners Club, JCB, Carte Bleue), PayPal, Local Bank Transfer, Wire Transfer, ACH, Google Pay, UK Direct Debit, Smart Debit, Real-time Bank Transfer, Electronic Check (ECP), Apple Pay, Skrill (Moneybookers), WebMoney, Sofort, Giropay, iDeal, ENETS and Alipay (SEPA (Single Euro Payments Area) Direct Debit, PaySafeCard, Ukash, cashU, Boleto Bancario, Boleto Bancario can be made available upon request) - Refund policy

Documentation

See activation instructions here: JTB World Apps Licensing

Run the SORTTABLE command or start it from Add-ins or Plug-ins ribbon tab in AutoCAD or the JTB Sort Table ribbon tab or toolbar in BricsCAD, then select columns to sort them.

You can select the table (or in AutoCAD alternatively a selection of columns, rows or cells) first then run SORTTABLE command, or run SORTTABLE command first, then select the table.

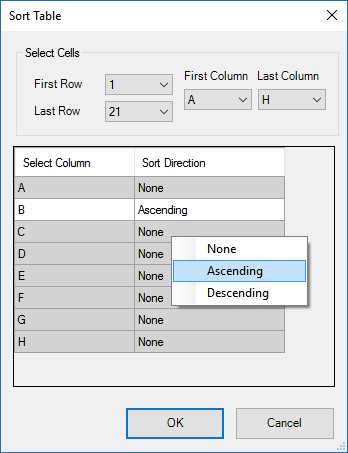

Sort Table dialog will show up. On the top section, you can adjust your cells by selecting new rows and columns. On the bottom section, you can select priority of sorting columns by clicking on one of the cells in the Select Column, and sorting options in Sort Direction column where Ascending, Descending, or None can be set.

Lastly, click OK then your data will be sorted.

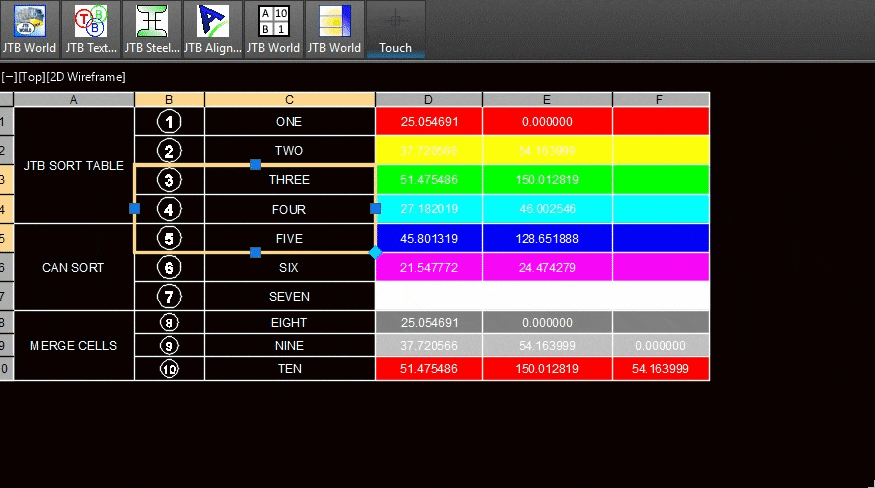

On the animation below, "A" column contains merge cells. "B" column contains blocks. "D" and "E" and "F" columns have background color equal to row's index. Try it and you can see:

+ If cell contains block, SORTTABLE will use the first attribute of the block (if existing) to sort by.

+ After sorting, merge cells are retained merged. This is because SORTTABLE will keep them merged as long as their rows are not separated.

Note: Trial version is available for 30 days.

Often BricsCAD does not allow the application to change text height, background color of cell that has default setting. Therefore the application work best on table where all cells are in default settings, or all cells have properties overridden.

Version History

2022-04-25 - version 2.3.0

  • Added AutoCAD 2023 support

2021-08-03 - version 2.2.1

  • Fixed an overflow bug in natural sorting.

2021-07-09 - version 2.2.0

  • Remove messages about uninstallation in very-silent installation mode.

2021-03-15 - version 2.2.0

  • Added AutoCAD 2022 support
  • Added natural numeric sorting

2020-08-16 - version 2.1.1

  • Upgraded to License 4.3

2020-05-08 - version 2.1.0

  • Added AutoCAD 2021 support.

2019-08-03 - version 2.0.3

  • Fixed write permission issue in app's folder.

2019-07-04 - version 2.0.2

  • Updated installer.
  • Issues fixed related to having other JTB World apps installed.

2019-03-28 - version 2.0.1

  • Added AutoCAD 2020 support.

2018-03-22 - version 2.0 (update for AutoCAD)

  • Added AutoCAD 2019 support. No change in version number.

2018-02-19 - version 2.0 (updated only for BricsCAD)

  • Fix error when working with cells contains blocks.

  • Fix text height lost after sorting.

  • Network license implemented.

  • Support BricsCAD version 18.

2017-05-12 - version 1.1 update

  • Added support for AutoCAD 2018 (No change in Version Number)

2017-02-16 - version 1.1

  • Fixed bug in cells with block
  • Fixed bug when sorting locked, read-only or linked cells

2017-01-12 - version 1.0

  • First release

License agreement

The license agreement is found here.

Customers

Some JTB Sort Table Customers

Almond Engineering

Mapitec Engineering & Consultancy

Sargent Solutions, Inc.

Korda/Nemeth Engineering Inc.

DSIC

Team LINX

Safetyfirst

 More customers are found here.

Back to top with sliders

If you want other features added feel free to contact us with your wishes.
