- If your files that exist in a Sheet Set have moved, been relocated, repathed or the like this tool comes handy.
- Status: File is missing. If it's a few sheets you can do it manually. If you have many sheets use Sheet Set Manager Path Edit.
- You can find and replace a path prefix for all sheets in a Sheet Set.
- If the drawing does not exist in the new location you will be notified as well as if other problems comes up.
Compatible with AutoCAD versions that has Sheet Set Manager (SSM) up to 2020 versions. All flavors based on AutoCAD should be working like AutoCAD Architecture (ACA), Architectural Desktop (ADT), AutoCAD Civil 3D, AutoCAD Electrical , AutoCAD Map 3D, AutoCAD Mechanical, AutoCAD MEP (AMEP, ABS), AutoCAD P&ID, AutoCAD Plant 3D, Autodesk Advance Steel.
64-bit AutoCAD is not supported for AutoCAD 2013 or older because the Sheet Set Manager API is a COM server that cannot be called from another process as opposed to an ActiveX server and the VBA environment is 32-bit.
AutoCAD 2014 and newer 64-bit is supported.
VBA for AutoCAD is required.
Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1 and Windows 10.
JTB World is an Autodesk Authorised Developer

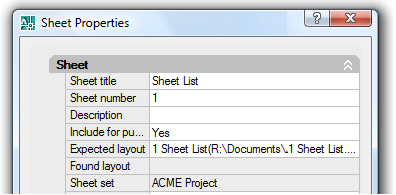

In the project below all sheets has "Status: File is missing" because the files where moved to a new location.
This is easily fixed using Sheet Set Manager Path Edit.
There will come up two prompts when the command is run:
Command: Enter the file path prefix to replace (Example: R:\):
Command: Enter the new file path prefix (Example: C:\):
The result of the run will be prompted to the command line.
Example: when changed from R:\Documents\AutoCAD Sheet Sets to R:\ACME Project
Command: Enter the file path prefix to replace (Example: R:\): R:\Documents\AutoCAD Sheet Sets
Command: Enter the new file path prefix (Example: C:\): R:\ACME Project
Changed Sheet: 1 - Sheet List from 'R:\Documents\AutoCAD Sheet Sets\1 Sheet List.dwg' to 'R:\ACME Project\1 SHEET LIST.DWG'
Changed Sheet: 2 - Main Plan from 'R:\Documents\AutoCAD Sheet Sets\2 Main Plan.dwg' to 'R:\ACME Project\2 MAIN PLAN.DWG'
Changed Sheet: 3 - Plan 1 to 50 South from 'R:\Documents\AutoCAD Sheet Sets\3 Plan 1 to 50 South' to 'R:\ACME Project\3 Plan 1 to 50 South'
Changed Sheet: 4 - Plan 1 to 50 North from 'R:\Documents\AutoCAD Sheet Sets\4 Plan 1 to 50 North' to 'R:\ACME Project\4 Plan 1 to 50 North'
Changed Sheet: 5 - Plan 1 to 50 West from 'R:\Documents\AutoCAD Sheet Sets\5 Plan 1 to 50 West' to 'R:\ACME Project\ Plan 1 to 50 West'
Changed Sheet: 6 - Plan 1 to 50 East from 'R:\Documents\AutoCAD Sheet Sets\6 Plan 1 to 50 East' to 'R:\ACME Project\6 Plan 1 to 50 East'

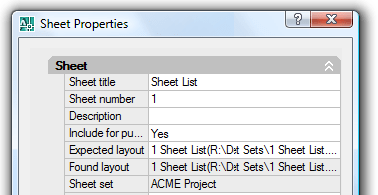

And here is the result. All layouts are found.
-vbaload and -vbarun can be used to create a macro to call the command.
Here’s what you can use as macro code for a button:
^C^C^C^P(vl-vbaload "C:/Sheet Set Manager Path edit tool/SSMChangePathPrefix - r22.dvb")(vl-vbarun "ThisDrawing.SSMChangePathPrefix")
Note that you need to change the path and name of the dvb and use forward slashes to separate folders.
If the new path being specified is not found AutoCAD cannot set the path.
If you need to change the paths before the new folders are created you need to use SSMPropEditor, an app that can do much more making the work with Sheet Set Manager easy.
10 USD for one license or less depending on the amount of licenses. When your purchase is completed you will get an email with a link to the download.
If you have really many users that you want to give access to this software we can discuss a discounted price based on your particular situation. Educational discounts available.
The license is perpetual and support is included. If you have more than one computer and you are the only user of the application one license is enough.
If your company is tax exempt note that BlueSnap does not currently offer a way to prevent tax from being charged on orders. We need a copy of the tax exempt certificate to refund the tax if already paid.
Available payment methods depending on country where payment is done from: Local Bank Transfer (Canada), Wire Transfer to Canada, Interac e-Transfer, Cheque (to Canada). Via BlueSnap (Global Payment Gateway) these methods may be available (not a complete list as it is updated from time to time by BlueSnap): Credit card (Visa, Master Card, American Express, Discover, Diners Club, JCB, Carte Bleue), PayPal, Local Bank Transfer, Wire Transfer, ACH, Google Pay, UK Direct Debit, Smart Debit, Real-time Bank Transfer, Electronic Check (ECP), Apple Pay, Skrill (Moneybookers), WebMoney, Sofort, Giropay, iDeal, ENETS and Alipay (SEPA (Single Euro Payments Area) Direct Debit, PaySafeCard, Ukash, cashU, Boleto Bancario, Boleto Bancario can be made available upon request) - Refund policy
