JTB Rebar is a BIM-like Rebar Callout - Automatic Rebar Table - Dynamic Beam Detailing app for AutoCAD.
JTB Rebar app has two sections. First section is generally about the "Rebar Callout" block. Second section is for rebar detailing commands. Currently, in the second section, there is 1 command available. It is JTBW_DETAILBEAM command.
Section 1 - Rebar Callout
The key object of JTB Rebar app is a special dynamic block named "Rebar Callout", used for tagging rebars.

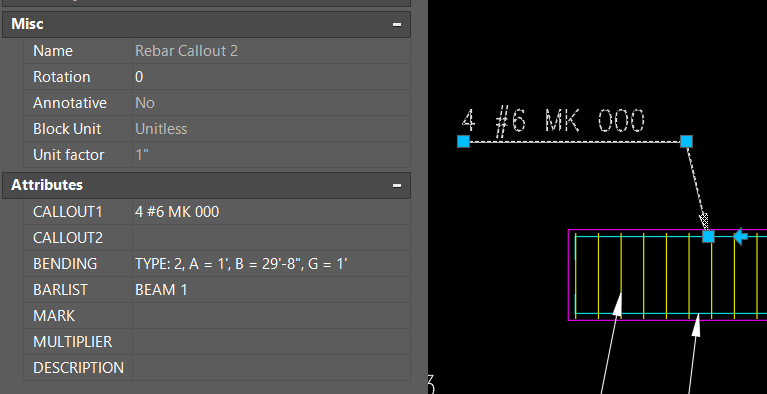

All the information of a rebar will be written to "Rebar Callout" block's attributes: rebar size, bending shape and dimensions, number of rebars, rebar mark and rebar table name (or barlist name).

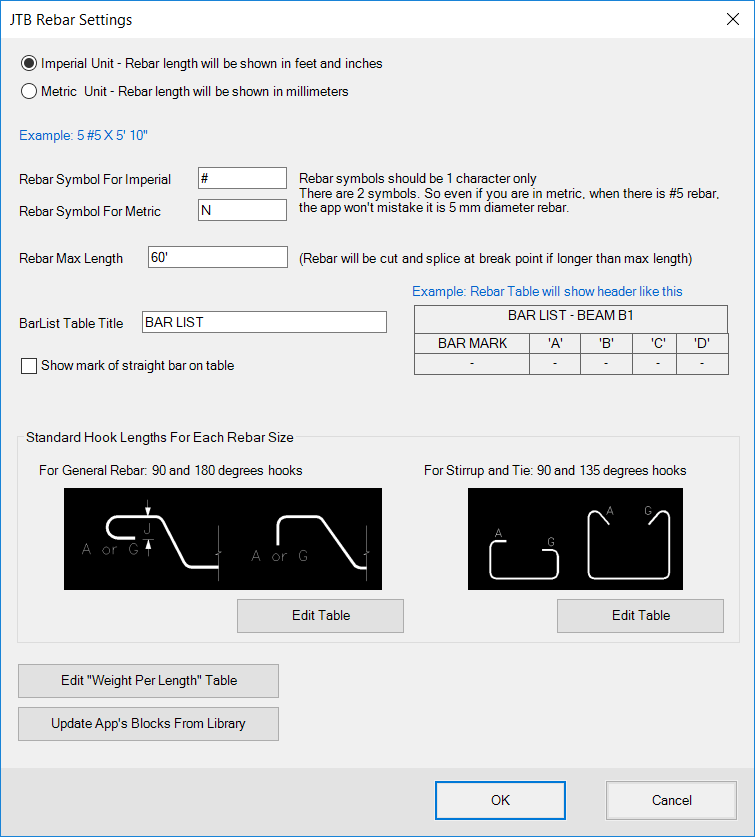

Various settings available

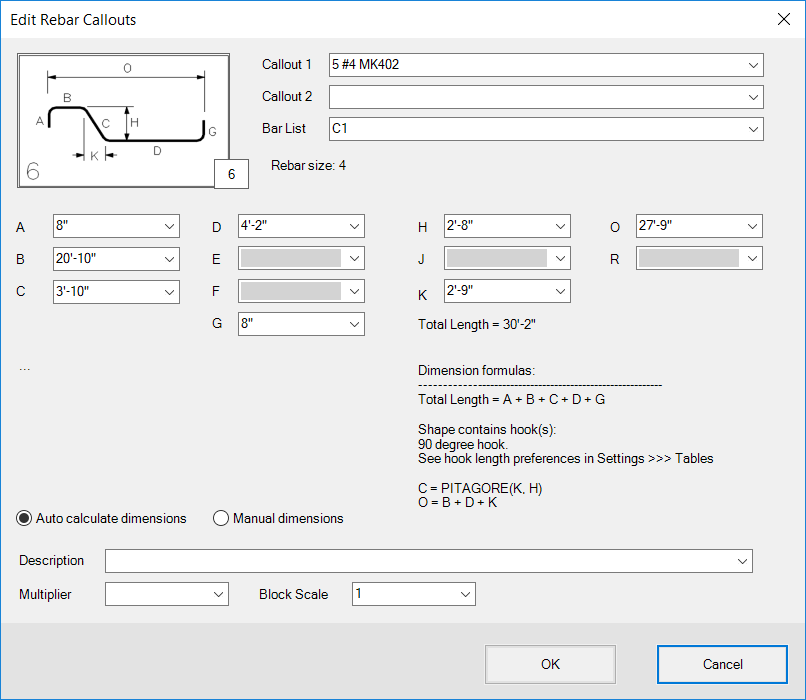

JTB Rebar gives you 2 commands helping you to work efficiently with the "Rebar Callout" block. They are JTBW_InsertRebarCallout and JTBW_EditRebarCallout.
Note that, there is no synchronization between the Rebar Callout block and the rebar line or pline object. Once drawing is changed, you have to run JTBW_EditRebarCallout to update the information.
But once you have all rebar callouts with correct bending information, the app can generate Rebar Tables (or Barlist Tables) across drawings for you. Rebar Callout blocks are like BIM objects, and the rest of the work is automatic:
- Run JTBW_GenRebarTables command, then select drawings. The app will parse all rebar callouts in all selected drawings, group similar rebars to groups, then assign unique rebar marks to them.

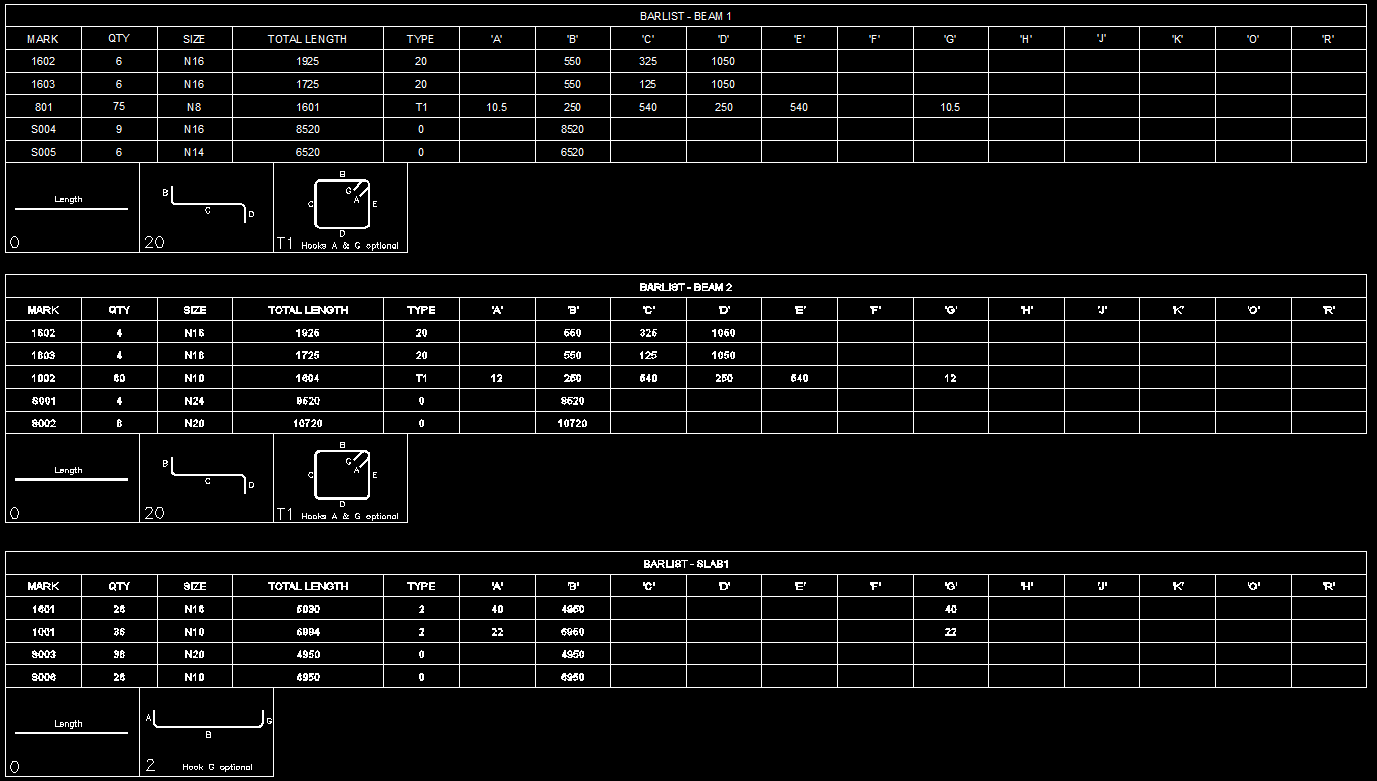

- Next, it will create or update existing Rebar Tables (or Barlist Tables) in each drawing.
- All rebar callouts in all selected drawings will have their mark updated.

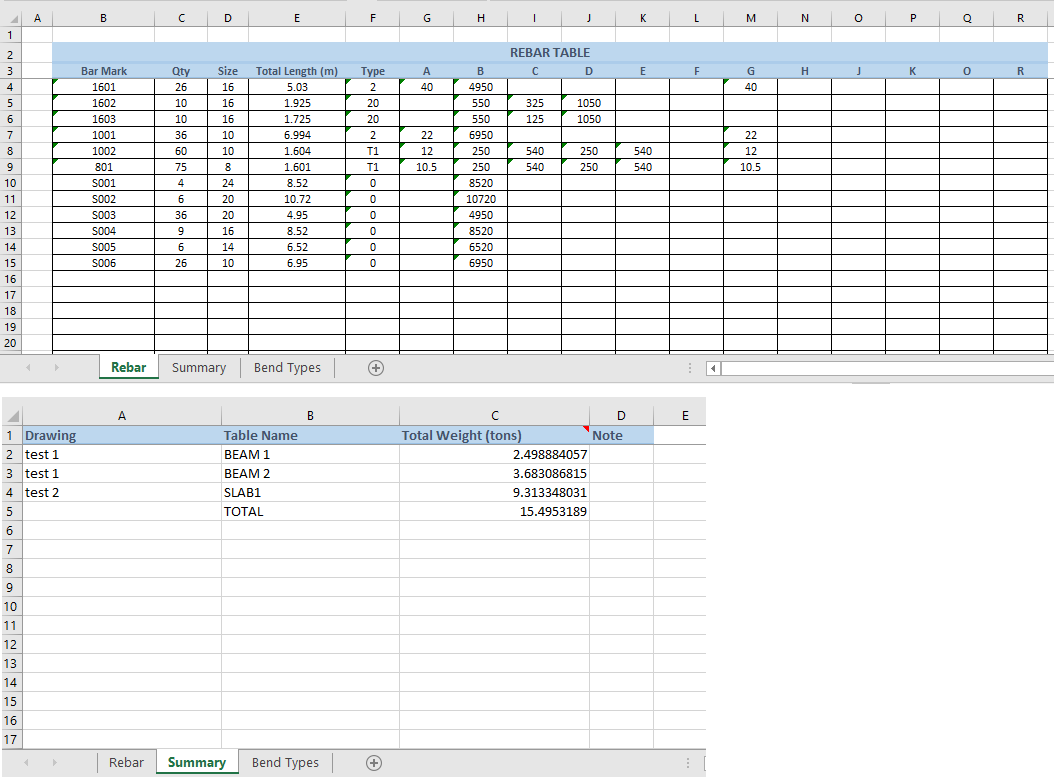

- Finally, all rebars information will be updated to Rebar spreadsheet.xlsx Excel workbook.
Section 2 - Beam Detailing Commands
The command's name is JTBW_DetailBeam. If you are drafting multi-span beam with varying heights every day, then this command can be a game changer for you.
The unique feature of the app is you don't have to enter beam's dimensions to a window with text boxes and combo boxes, etc. !

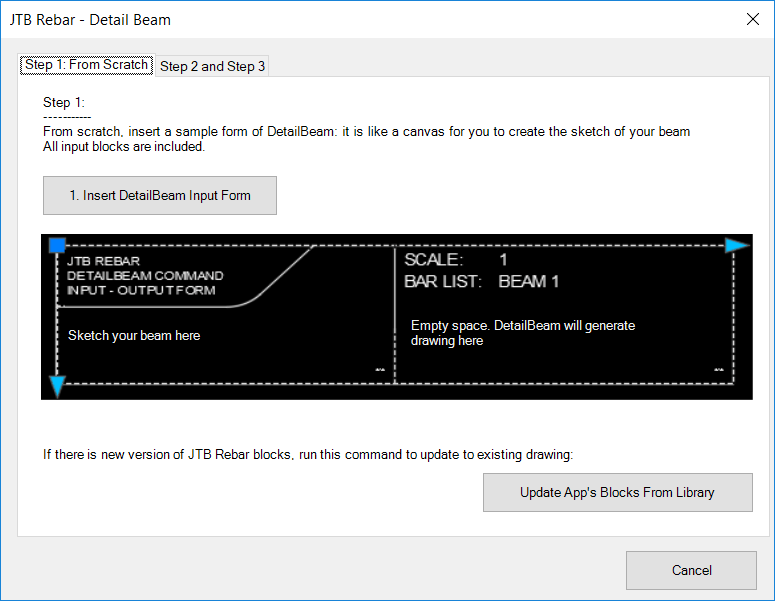

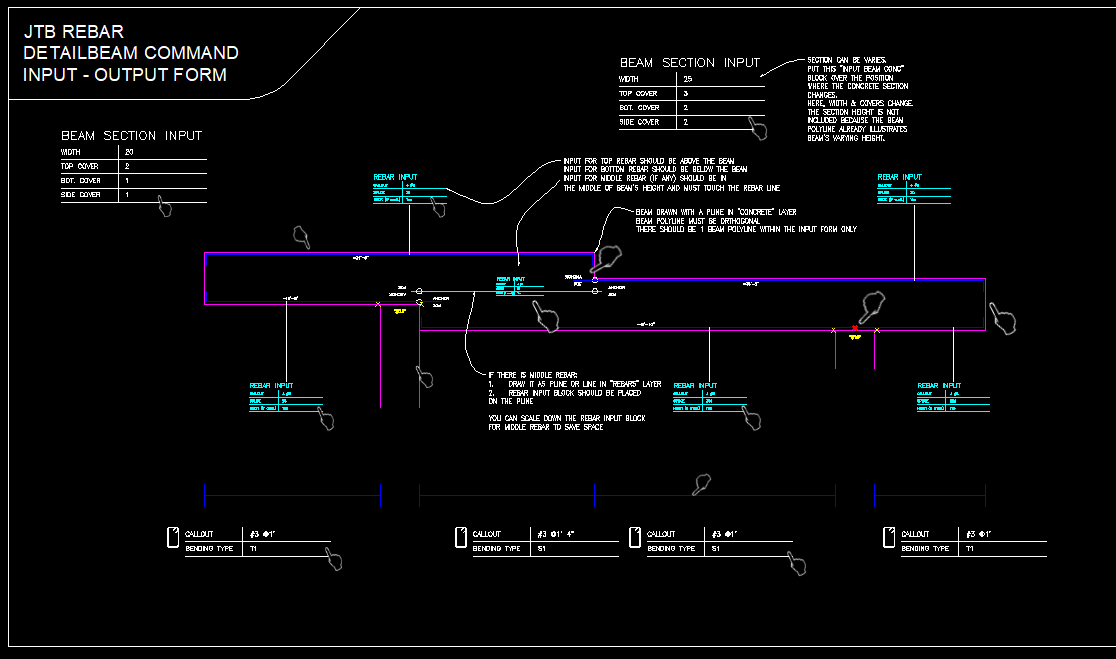

The input form for the beam is the AutoCAD drawing itself! You draw your beam sketch, fill information to input blocks of beam section, rebar, rebar tie, anchor, etc. You can also copy your sketch to make another beam!

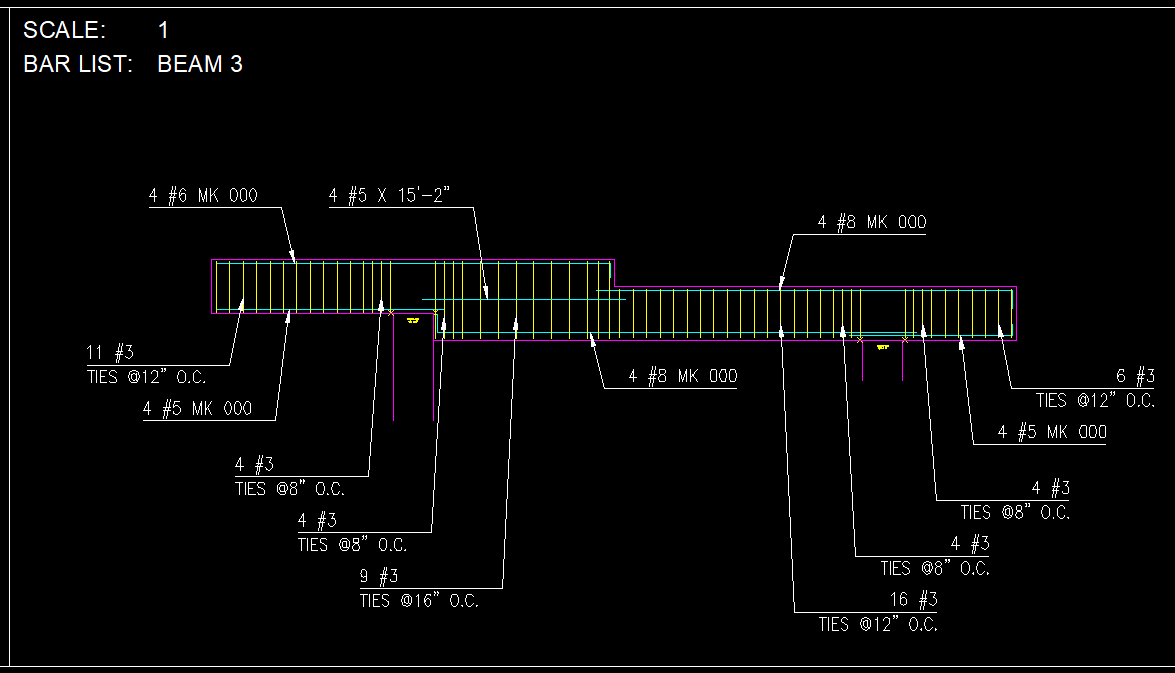

Then, based on your sketch, JTBW_DetailBeam command will generate the final drawing of the beam.
Moreover, beam's rebars will be tagged properly by "Rebar Callout" blocks. Therefore, to create the Rebar Table (or Barlist Table), it is just one click away by running the JTBW_GenRebarTables.
Insert and Edit Callouts
Trial License is available for 15 days after first usage. Trial license is for evaluation, non commercial and educational purpose only.
Operating system: same as the CAD software is running on.
Compatible with AutoCAD versions (2013 and up to AutoCAD 2019). Works with all flavors/verticals based on AutoCAD like AutoCAD Architecture (ACA), AutoCAD Civil 3D, AutoCAD Electrical , AutoCAD Map 3D, AutoCAD Mechanical, AutoCAD MEP (AMEP, ABS), AutoCAD P&ID, AutoCAD Plant 3D, Autodesk Advance Steel.
Contact us if support for other CAD software is needed.
JTB World is an Autodesk Authorised Developer
195 USD for one license of JTB Rebar or less depending on the quantity of licenses.
If you have really many users that you want to give access to this software we can discuss a discounted price based on your particular situation. Educational discounts available.
The license is perpetual and support is included. If you have more than one computer and you are the only user of the application one license is enough.
Purchase directly from us. Click on Buy Now below.
Once installed, the app is running in Trial Mode, with Trial License. Trial License will expire 15 days after first usage. Once purchased a license run JTBW_Activate_Apps, Activate the app and follow the instructions. After receiving the Activation Key you can use this app with full functionality.
The key is typically sent back within 24 hours.
Available payment methods depending on country where payment is done from: Local Bank Transfer (Canada), Wire Transfer to Canada, Interac e-Transfer, Cheque (to Canada). Via BlueSnap (Global Payment Gateway) these methods may be available (not a complete list as it is updated from time to time by BlueSnap): Credit card (Visa, Master Card, American Express, Discover, Diners Club, JCB, Carte Bleue), PayPal, Local Bank Transfer, Wire Transfer, ACH, Google Pay, UK Direct Debit, Smart Debit, Real-time Bank Transfer, Electronic Check (ECP), Apple Pay, Skrill (Moneybookers), WebMoney, Sofort, Giropay, iDeal, ENETS and Alipay (SEPA (Single Euro Payments Area) Direct Debit, PaySafeCard, Ukash, cashU, Boleto Bancario, Boleto Bancario can be made available upon request) - Refund policy
Note: Once installed, the app is running in Trial Mode, with Trial License. Trial License will expire 15 days after first usage. Once purchased a license run JTBW_Activate_Apps, Activate the app and follow the instructions. After receiving the Activation Key you can use this app with full functionality.
