No more headache with "File Not Found" errors showing all over your Xref palette. With JTB FixRefs, you can handle fixing them all on a spreadsheet. If you find AutoCAD's Reference Manager limited in functionality or need it for BricsCAD, try JTB FixRefs.

First, you select drawings, or all drawings in a folder and/or subfolders. A spreadsheet will bring up and list all your reference files in all your drawings, including Xrefs, Datalinks (Excel links), Raster Images, PDFs, DWFs, and DGNs.



There are Saved Paths column and Fixed Paths column

If files not found, in most cases, JTB FixRefs can automatically find them for you and show them in Fixed Paths column.

Finally, click the "Run" button. Then, JTB FixRefs will go through listed drawings and external references and apply the new specified paths.

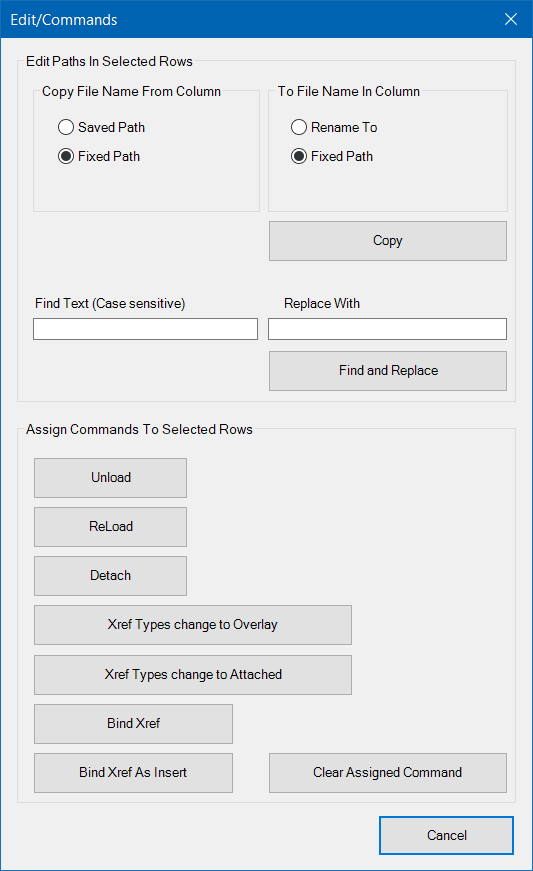

Edit/Commands dialog box.


Additional Features:

  • Version of updated DWG files is retained.
  • Filter your drawings and references.
  • Convert file paths from absolute paths to relative paths and vice versa.
  • Rename the reference objects.
  • Detach, Unload, Reload.
  • Bind xrefs.
  • Option to retain date modified after saving.
  • Button to open drawing's folder in Window Explorer.

Trial license is available for 15 days since first installation. Trial license is also limited to process up to 10 drawings only.

Download

Trial License will expire in 15 days after first usage. Support is available during the trial as well as after purchase.

JTB FixRefs can be downloaded here, or in Autodesk App Store or by contacting us.

If purchase has been done via Autodesk App Store the download is available on the Autodesk App Store My Downloads page. Sign in with the same account used when purchasing.

Newsletter

Subscribe to our JTB FixRefs newsletter or any of our other Newsletters.

System requirements

Operating system: same as the CAD software is running on.

Compatible with AutoCAD versions (2013 and up to AutoCAD 2023). Works with all flavors/verticals based on AutoCAD like AutoCAD Architecture (ACA), AutoCAD Civil 3D, AutoCAD Electrical , AutoCAD Map 3D, AutoCAD Mechanical, AutoCAD MEP (AMEP, ABS), AutoCAD P&ID, AutoCAD Plant 3D, Autodesk Advance Steel.

BricsCAD Pro or Platinum 15 and newer is supported. BricsCAD Lite is not supported.

Contact us if support for other CAD software is needed.

JTB World is an Autodesk Authorised Developer

Purchase

New license: 125 USD for one license of JTB FixRefs or less depending on the quantity of licenses.

Purchase directly from us. Click on Buy Now below.

Secure Online Payments and Credit Card Processing by BlueSnap

Purchase JTB FixRefs from the Autodesk App Store site.

Upgrade license: 60 USD for one license of JTB FixRefs or less depending on the quantity of licenses.

Secure Online Payments and Credit Card Processing by BlueSnap

If you have really many users that you want to give access to this software we can discuss a discounted price based on your particular situation. Educational discounts available.

The license is perpetual. Support and upgrades is included for a minimum of 2 years after purchase. If you have more than one computer and you are the only user of the application one license is enough.

Once installed, the app is running in Trial Mode, with Trial License. Trial License will expire 15 days after first usage. See activation instructions here: JTB World Apps Licensing

If purchase has been done via Autodesk App Store the download is available on the Autodesk App Store My Downloads page. Sign in with the same account used when purchasing.

If your company is tax exempt note that BlueSnap does not currently offer a way to prevent tax from being charged on orders. We need a copy of the tax exempt certificate to refund the tax if already paid.

Available payment methods depending on country where payment is done from: Local Bank Transfer (Canada), Wire Transfer to Canada, Interac e-Transfer, Cheque (to Canada). Via BlueSnap (Global Payment Gateway) these methods may be available (not a complete list as it is updated from time to time by BlueSnap): Credit card (Visa, Master Card, American Express, Discover, Diners Club, JCB, Carte Bleue), PayPal, Local Bank Transfer, Wire Transfer, ACH, Google Pay, UK Direct Debit, Smart Debit, Real-time Bank Transfer, Electronic Check (ECP), Apple Pay, Skrill (Moneybookers), WebMoney, Sofort, Giropay, iDeal, ENETS and Alipay (SEPA (Single Euro Payments Area) Direct Debit, PaySafeCard, Ukash, cashU, Boleto Bancario, Boleto Bancario can be made available upon request) - Refund policy

Documentation

See activation instructions here: JTB World Apps Licensing

Start the app from the Add-ins tab on the Ribbon in AutoCAD, JTB FixRefs menu in BricsCAD or with the command FixRefs.

Select files or folders.

Use checkbox "Including Xref Drawings If Found" to also add any found xrefs to the list of drawings.

Checkbox Retain Date gives the option to retain date modified after saving.

This is how JTB FixRefs find the missing reference file:

For example when your old file path is "T:\A\B\C\D\E\Your Ref Filename", and you move your host drawing to a new folder "M:\New Location\Project 1", and you change the subfolder structure a little. Then, JTB FixRefs will check these file paths to see if it is available:

"M:\New Location\Project 1\A\B\C\D\E\Your Ref Filename"

"M:\New Location\Project 1\B\C\D\E\Your Ref Filename"

"M:\New Location\Project 1\C\D\E\Your Ref Filename"

"M:\New Location\Project 1\D\E\Your Ref Filename"

"M:\New Location\Project 1\E\Your Ref Filename"

"M:\New Location\Project 1\Your Ref Filename"

In case all those file paths do not exist, you have to enter the new file paths to the Fixed Paths column. Since it is a spreadsheet, it is pretty easy to do using copy, paste tools

You can select all the spreadsheet, copy and paste it to Excel. Then, in Excel, you can edit the paths using Excel's more powerful tools like Find and Replace, functions, etc. Finally, paste the data back properly to JTB FixRefs.

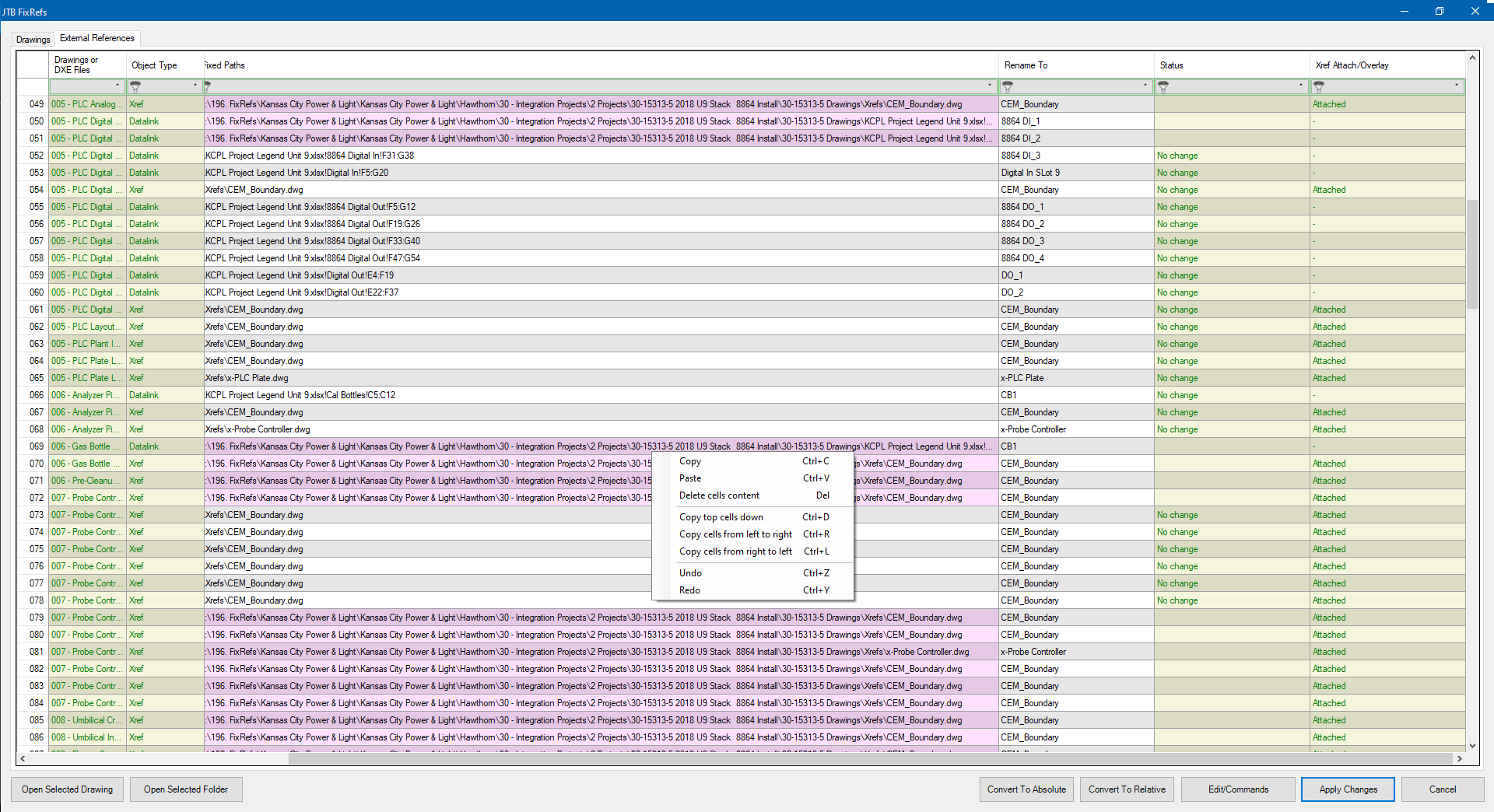

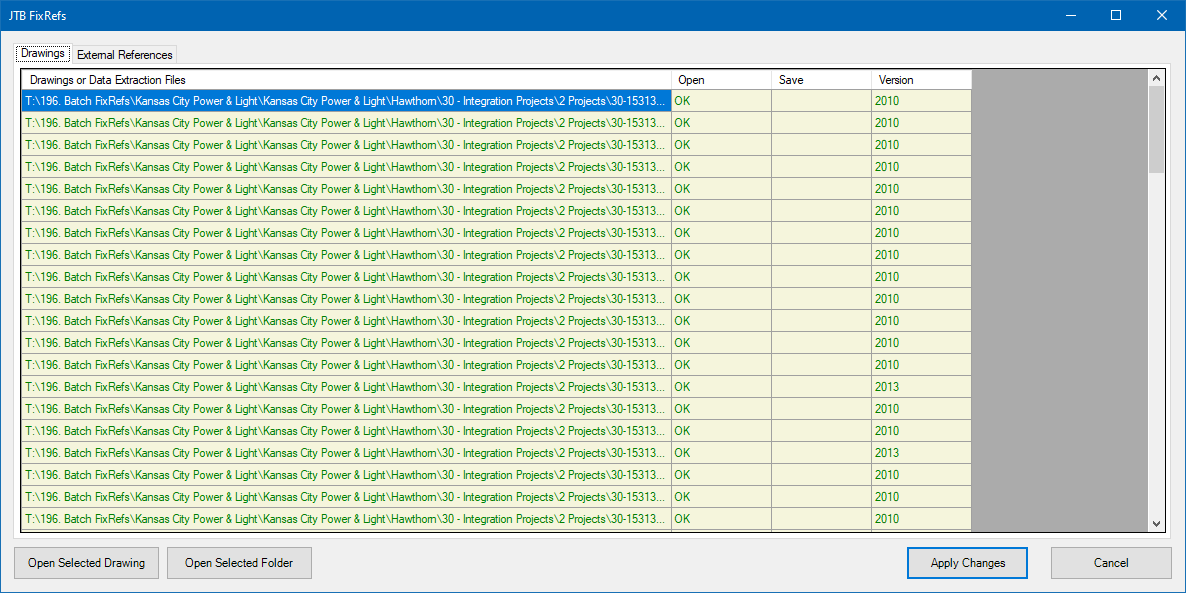

There are two tabs in the JTB FixRefs windows: the "Drawings" tab and the "External References" tab.

On each tab, you can see additional info of drawings and references objects: error when open drawing, error when saving drawing, drawing version, file not found, object is unreferenced, error when run fixing.

Known issue:

If your drawing is already open, renamed object won't appear on the External References palettes until drawing is saved and reopen.
