HVACPAC is an AutoCAD and BricsCAD app for HVAC and Piping design work in 2D and 3D.

HVACPAC includes all In-line duct fittings and equipment, air terminals and HVAC associated pipe work. HVAC schematic program is included. HVACPAC was developed around South African standards (Which are similar to most countries) but can be customized to further needs if required and requested.

Currently metric is supported. If need for imperial let us know.

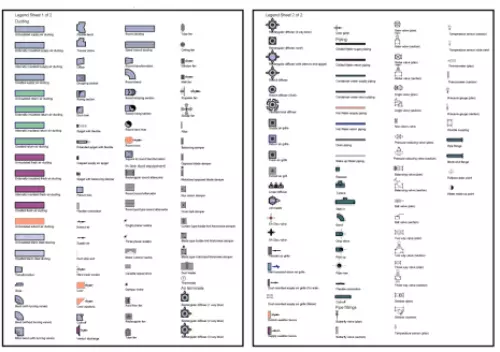

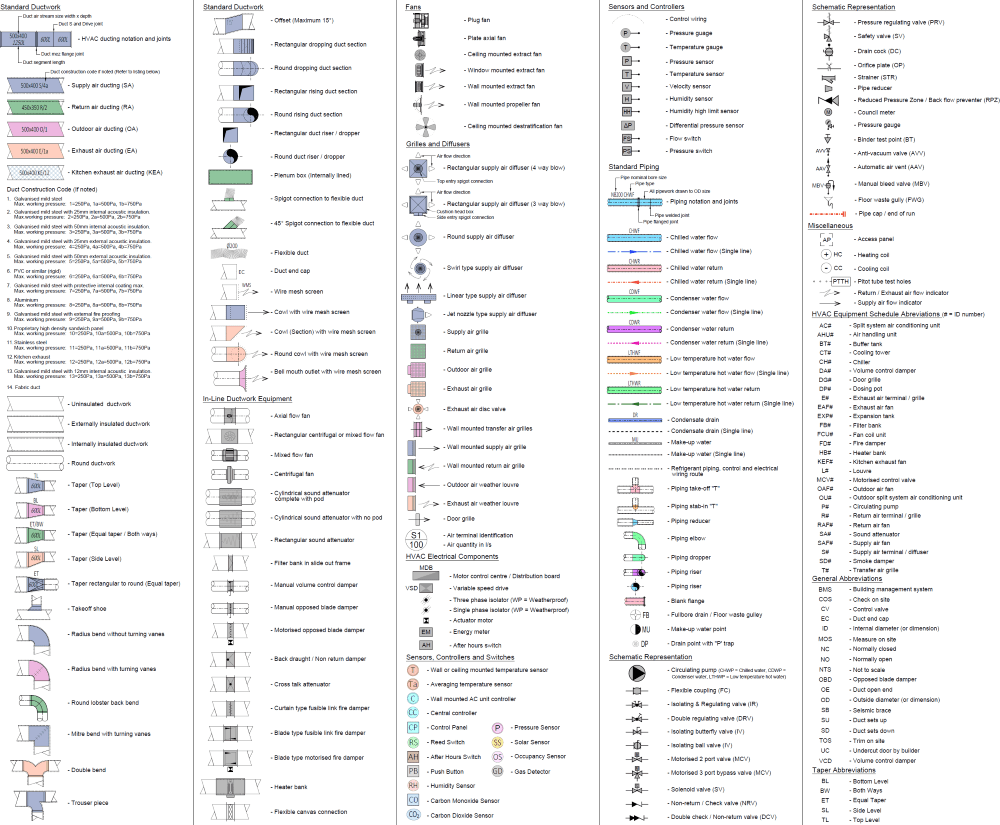

Legends showing supported objects in HVACPAC. See also this PDF HVACPAClegend.pdf.

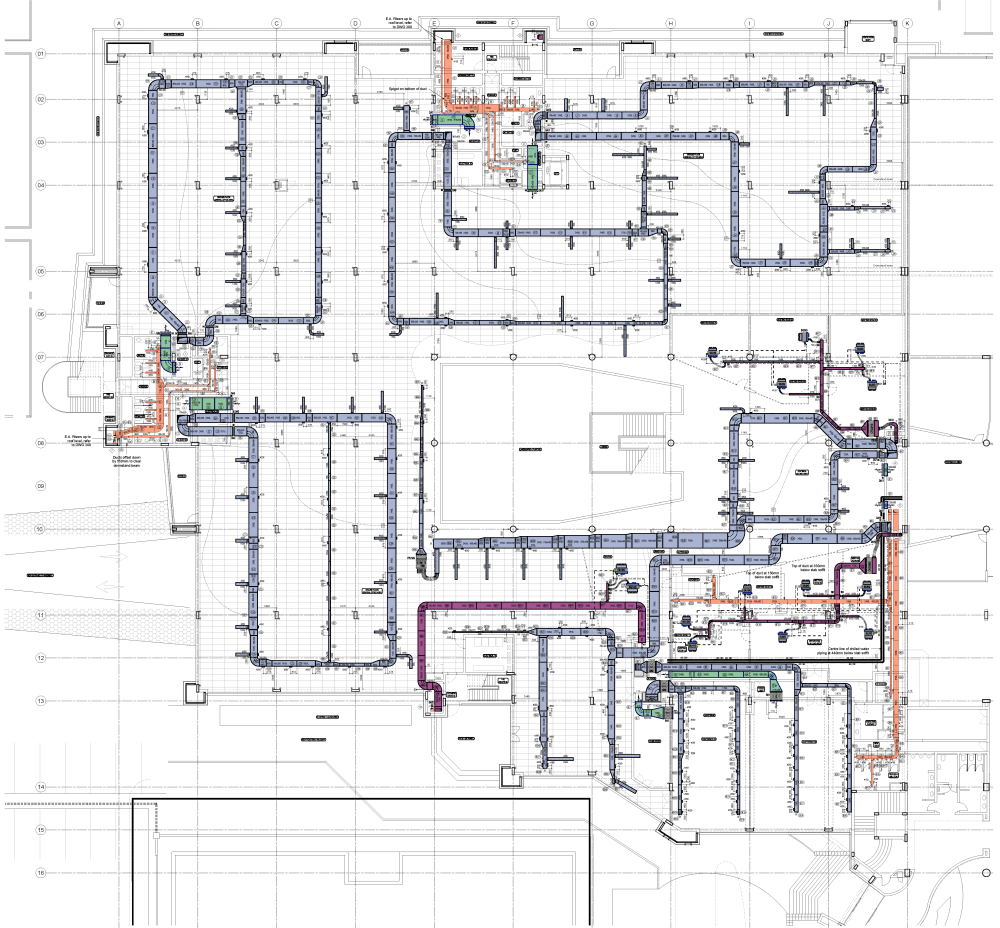

HVAC drawing.

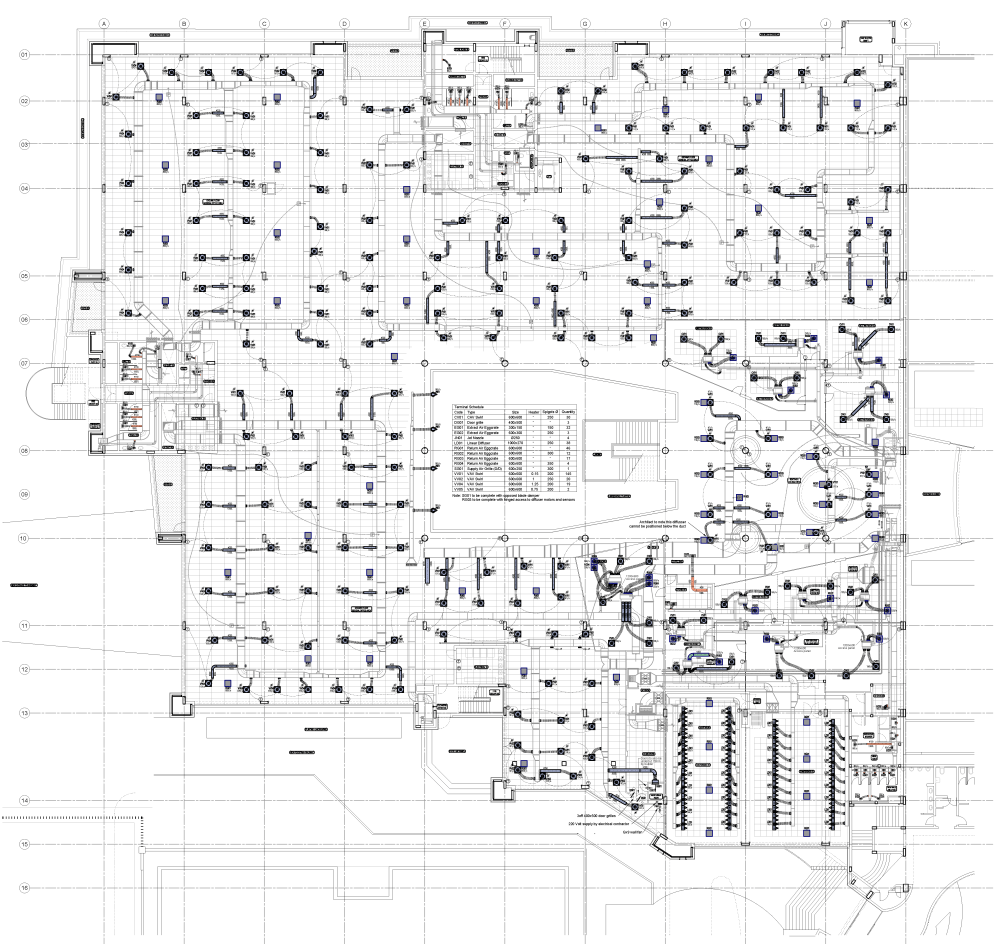

Air terminals.

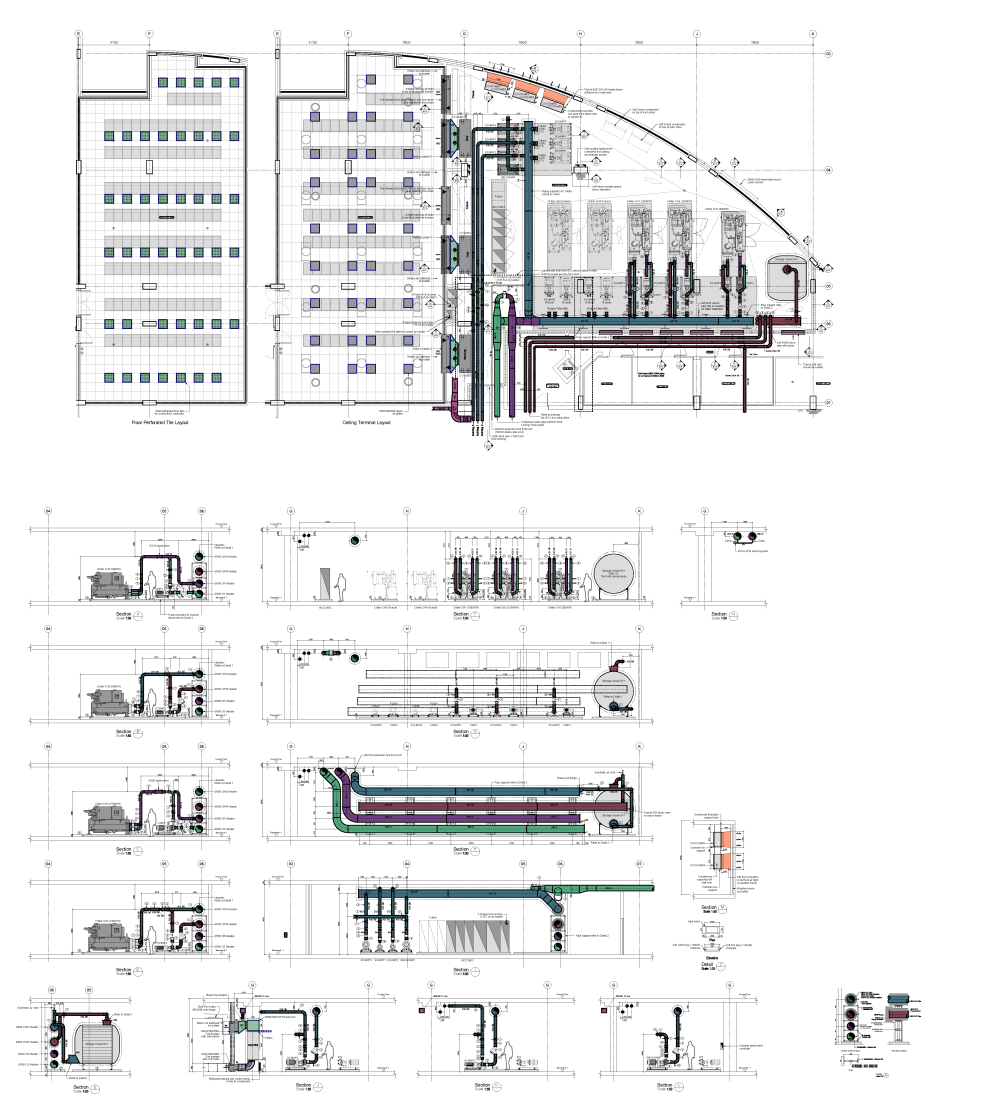

Piping drawing.

Right click and download demo video showing how to use the 3D flexible or view it below.



Download

Allows to run for 30 days before the trial period is over.

For AutoCAD 2012: HVACPACsetup2012.exe

For AutoCAD 2013-2017: HVACPAC2017-Demo.exe

For AutoCAD 2018: HVACPAC2018-30 day trial.exe

For AutoCAD 2019 and 2020: HVACPAC2019-30day Trial.exe

For AutoCAD 2021 and 2022: HVACPAC2021-30 day trial

For AutoCAD 2023 and 2024: HVACPAC2024 30 day trial

Contact us for newer versions.

Installer for BricsCAD: HVACPAC-B18-30day Trial.exe Install Havapac then open BricsCAD and type appload, find the folder C:\Hvapac-B18 and load Hvacsetup-B18.des. Type Hvacpac-B18 to load the software. Hvacpac can be run from the ribbon or the toolbars.

You might need to right-click on the exe, select properties and press the unlock button if you cannot start it after downloading.
